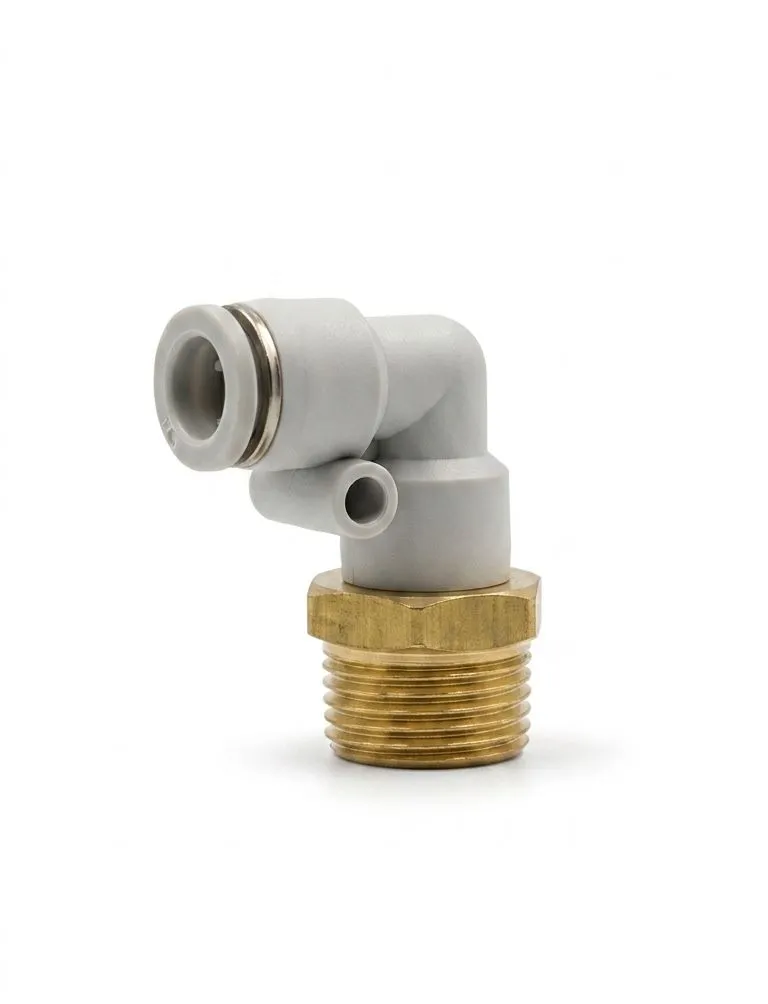

Enhieve seamless routing and maximize tight spaces with the AIRMIXS PL-5/16-1/2. This premium 90-degree swivel male elbow is expertly designed to bridge a 5/16" outer diameter (OD) pneumatic hose with a high-capacity 1/2" male NPT threaded port. Combining a tough, impact-resistant composite body with a solid brass threaded foundation, it stands up to challenging mechanical stress and aggressive industrial environments.
The integrated swivel assembly allows the main composite body to rotate 360 degrees after thread tightening, giving you total freedom to orient your lines perfectly. Complete with pre-applied thread sealant for immediate, leak-proof deployment and an ergonomic release collar for rapid tool-free tube changes, this fitting is ideal for advanced packaging lines, heavy automation systems, automotive air infrastructure, and multi-valve manifolds.
Attribute | Specification |
|---|
Brand | AIRMIXS |
Model / Part Number | PL-5/16-1/2 (Fractional / Inch Series) |
Fitting Type | 90° Swivel Male Elbow (One-Touch Push-Lock) |
Tubing Connection (OD) | 5/16 inch (Compatible with 8mm OD tubing applications) |
Threaded Connection | 1/2" Male NPT (with Pre-Applied Thread Sealant) |
Body Material | High-performance Composite (PBT) & Solid Brass |
Release Sleeve Material | High-grade Engineering Plastic (POM) |
Lock Claw / Gripping Ring | Stainless Steel |
Internal Sealing | NBR (Buna-N) |
Fluid Media | Compressed Air, Vacuum, Inert Gases |
Working Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative / Vacuum Pressure | -29.5 in Hg (-750 mmHg) |
Proof Pressure | 1.5 MPa |
Operating Temperature | 32°F to 140°F (0°C to 60°C) |
Recommended Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
