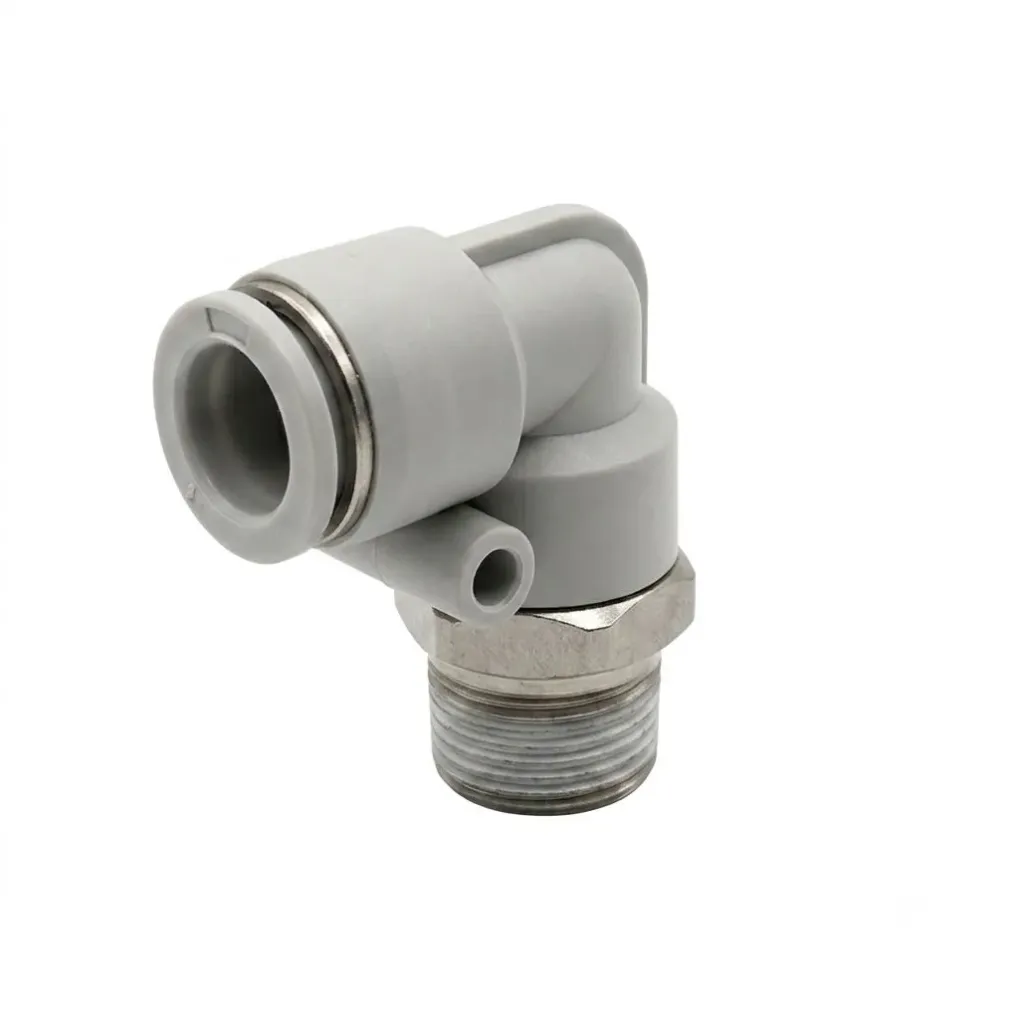

The PL 3/8-3/8 Pneumatic Male Elbow Fitting is a 90-degree push-to-connect fitting engineered for quick, leak-free connection of tubing to threaded ports in pneumatic and compressed air systems. Featuring an intuitive push-in release collar, it allows rapid, tool-free tube insertion and disconnection. The body features a swivel design, enabling 360-degree rotation after mounting for easy alignment and clean hose routing in tight machine layouts.
Specification | Details |
|---|
Model / Part Number | PL 3/8-3/8 (PL-3/8-N03 / PL3/8-03) |
Fitting Type | 90° Swivel Male Elbow Push-in Fitting |
Tube Outer Diameter (OD) | 3/8 Inch (approx. 9.52 mm - 10 mm) |
Male Thread Size | 3/8 Inch NPT / BSPT |
Fluid / Applicable Media | Compressed Air, Inert Gases, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10.2 kgf/cm²) |
Vacuum Pressure | -29.5 inHg (-750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Thread Sealing | Pre-coated Thread Sealant / O-ring Seal |
