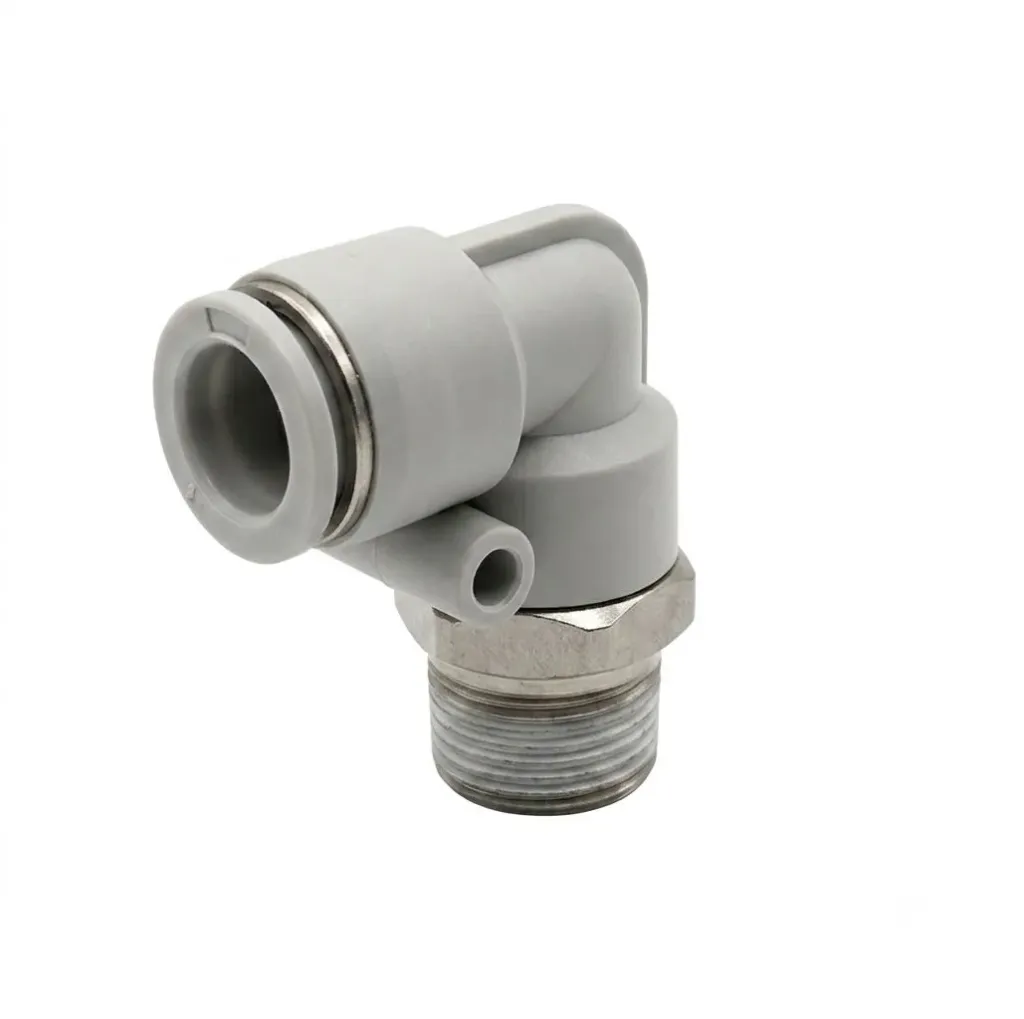

The PL 3/8-1/4 Pneumatic Male Elbow Fitting is a 90-degree push-to-connect fitting engineered for secure, leak-free connections in industrial compressed air and pneumatic systems. Featuring a tool-free push-in mechanism, it allows rapid insertion and release of pneumatic tubing to simplify assembly and maintenance. The integrated swivel design allows full 306-degree rotation after installation for easy alignment in tight spatial configurations.
Specification | Details |
|---|
Model Code | PL 3/8-1/4 (PL-3/8-N02 / PL3/8-02) |
Fitting Type | 90° Swivel Male Elbow Push-in Fitting |
Tube Outer Diameter (OD) | 3/8 Inch (approx. 9.52 mm - 10 mm) |
Male Thread Size | 1/4 Inch NPT / BSPT |
Fluid / Media | Compressed Air, Inert Gases, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10.2 kgf/cm²) |
Vacuum Rating | -29.5 inHg (-750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Thread Sealing | Pre-applied Thread Sealant / O-ring Seal |
