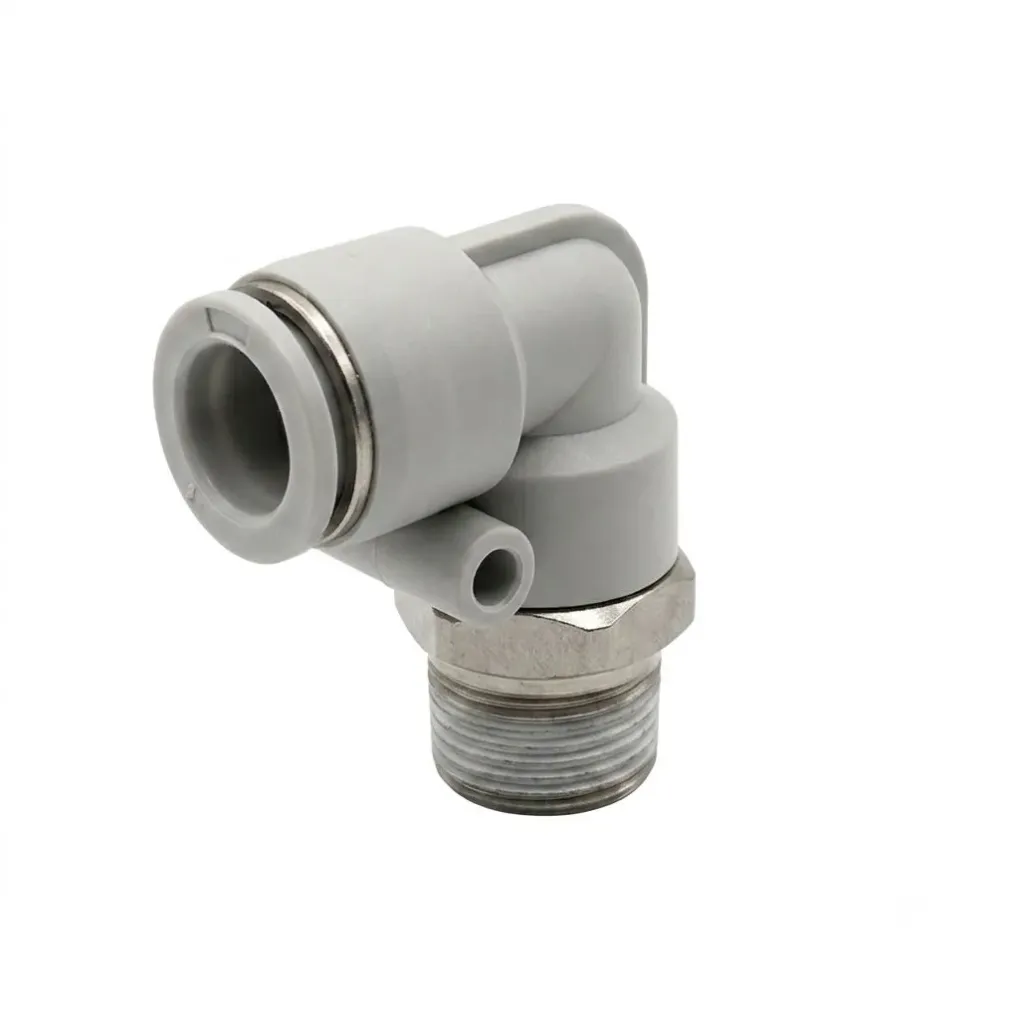

The PL 3/8-1/2 Pneumatic Male Elbow Fitting is a 90-degree push-to-connect fitting engineered to connect 3/8" outer diameter tubing to a 1/2" male threaded port in pneumatic and compressed air systems. Featuring a quick push-in mechanism, it provides a leak-free seal and quick release without the need for specialized tools. The body incorporates a 360-degree swivel design, allowing flexible positioning and convenient hose alignment during installation in tight spatial configurations.
Specification | Details |
|---|
Model / Part Number | PL 3/8-1/2 (PL-3/8-N04 / PL3/8-04) |
Fitting Type | 90° Swivel Male Elbow Push-in Fitting |
Tube Outer Diameter (OD) | 3/8 Inch (approx. 9.52 mm - 10 mm) |
Male Thread Size | 1/2 Inch NPT / BSPT |
Fluid / Applicable Media | Compressed Air, Inert Gases, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10.2 kgf/cm²) |
Vacuum Pressure | -29.5 inHg (-750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
Thread Sealing | Pre-coated Thread Sealant / O-ring Seal |
