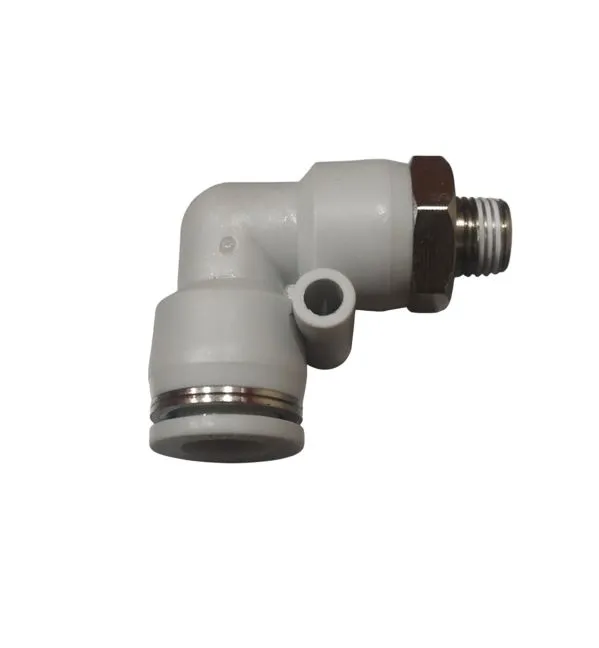

The AIRMIXS PL 1/2-1/2 is a heavy-duty, 90-degree push-to-connect male elbow fitting designed for high-flow pneumatic systems. As illustrated in AIRMIXS PL-1 2-1 2.png, this fitting features a clean white industrial composite body coupled with a durable nickel-plated brass threaded base, establishing a secure, leak-free connection for large-capacity 1/2" outer diameter (OD) tubing.
Its space-saving elbow layout allows for smooth right-angle transitions in crowded system layouts, while the integrated swivel mechanism permits 360-degree rotation of the body post-installation for precise tube routing. Engineered to withstand heavy-duty automation environments, industrial machinery, and production facilities, it delivers long-term durability and maximizes compressed air flow efficiency.
Specification | Technical Data |
|---|
Model Number | PL 1/2-1/2 |
Fitting Type | 90° Male Elbow (Swivel Type) |
Port A (Tube Connection) | 1/2" Tube OD |
Port B (Thread Connection) | 1/2" NPT / PT (Male Thread) |
Body Material | Industrial Polymer Composite (White) |
Thread Base Material | Nickel-Plated Brass |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
