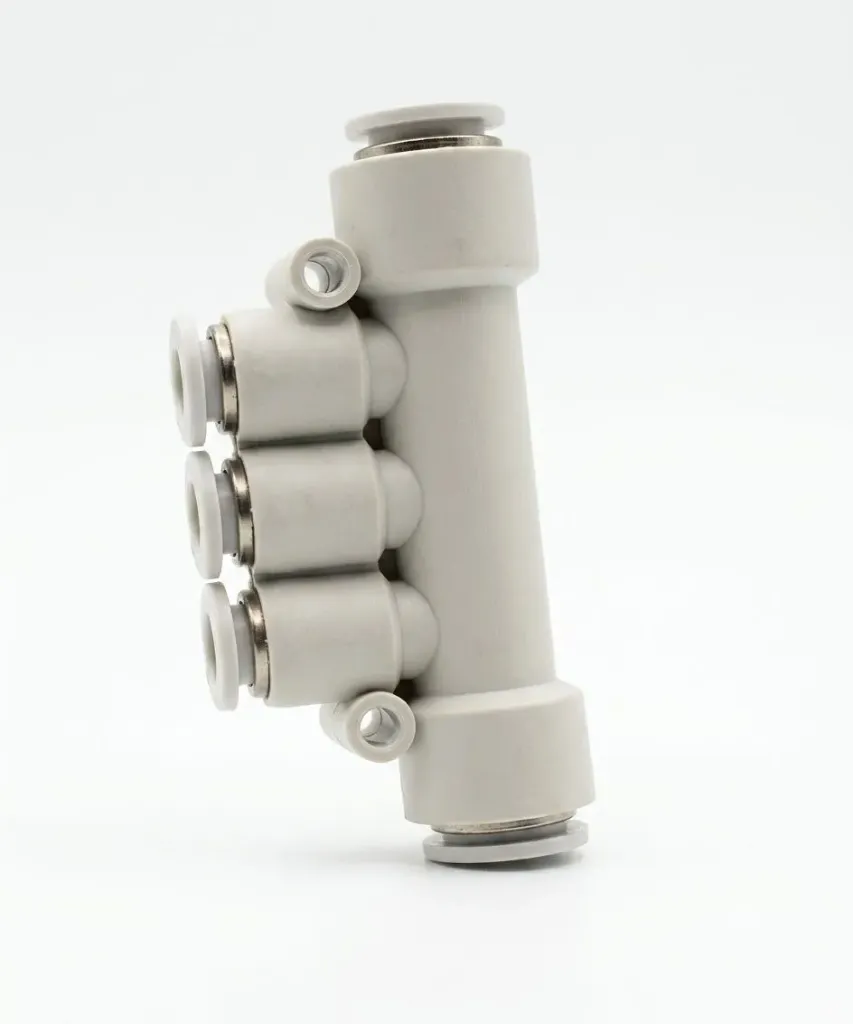

The PK10 Manifold Union Fitting is a 5-way push-to-connect multi-port splitter engineered to divide a main compressed air supply into multiple branches or consolidate multiple pneumatic lines into a central junction. Designed for 10mm outer diameter (O.D.) flexible tubing, it features quick, tool-free hose insertion and effortless release for high-flow industrial systems.
Constructed with a durable PBT composite resin body, stainless steel internal lock claws, and high-seal NBR O-rings, the PK10 maintains a leak-free seal under continuous operating pressure. Its 5-port manifold design helps reduce air line clutter, optimizing space management inside pneumatic distribution enclosures, automated machinery, and heavy-duty factory air circuits.
Property | Technical Specification |
|---|
Model Code | PK10 (PK-10 / PK-10mm) |
Fitting Type | 5-Way Equal Manifold Union (Push-In / One-Touch) |
Applicable Tube Outer Diameter (O.D.) | 10 mm (All Ports) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Proof / Burst Pressure | 1.5 MPa (~215 PSI) |
Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Body Material | PBT / POM Composite Resin |
Locking Mechanism | Stainless Steel (SUS 304) Gripping Claws |
Seals | NBR (Nitrile Rubber) O-Ring |
