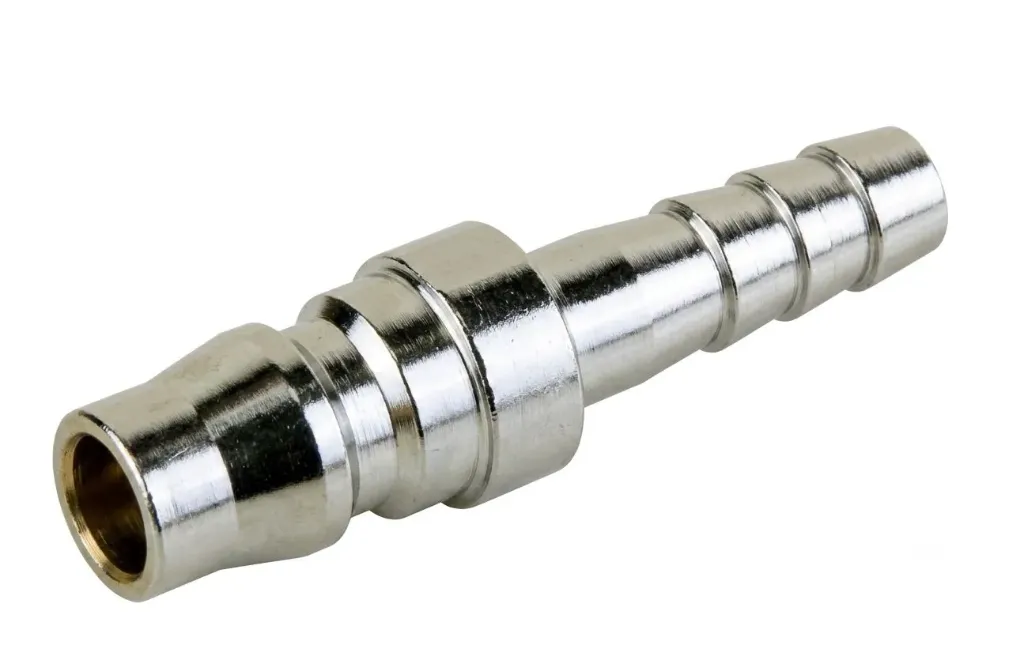

The AIRMIXS PH 30 is an industrial-grade quick-connect pneumatic plug (nipple) featuring an integrated hose barb connection. Designed for standard 30-Series Japanese/Nitto-style quick couplers (SH 30, SM 30, SF 30 series), it connects directly into 10mm (3/8") inner diameter flexible pneumatic lines and air hoses. Precision-machined from heat-treated chrome-plated steel, the PH 30 offers high flow capacity, superior resistance to mechanical wear, and a reliable leak-proof connection for air tools, compressors, and shop distribution lines.
Feature / Specification | Detail |
|---|
Model Code | PH 30 (PH-30) |
Coupler Component | Quick Connect Plug / Nipple (Hose Barb End) |
Interchange Standard | Japanese / Nitto Profile (C-Type 30 Series) |
Body Size | 3/8" (30 Series) |
Connection Type | 10mm (3/8") Hose Barb (Fits 10mm ID Hose) |
Body Material | Hardened Chrome-Plated / Nickel-Plated Steel |
Valve Mechanism | Valveless / Open-Flow Design |
Working Pressure | 0 to 1.5 MPa (0 – 15 bar / 215 PSI) |
Maximum Pressure | 2.0 MPa (20 bar / 290 PSI) |
Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Compatible Media | Compressed Air, Inert Gases |
