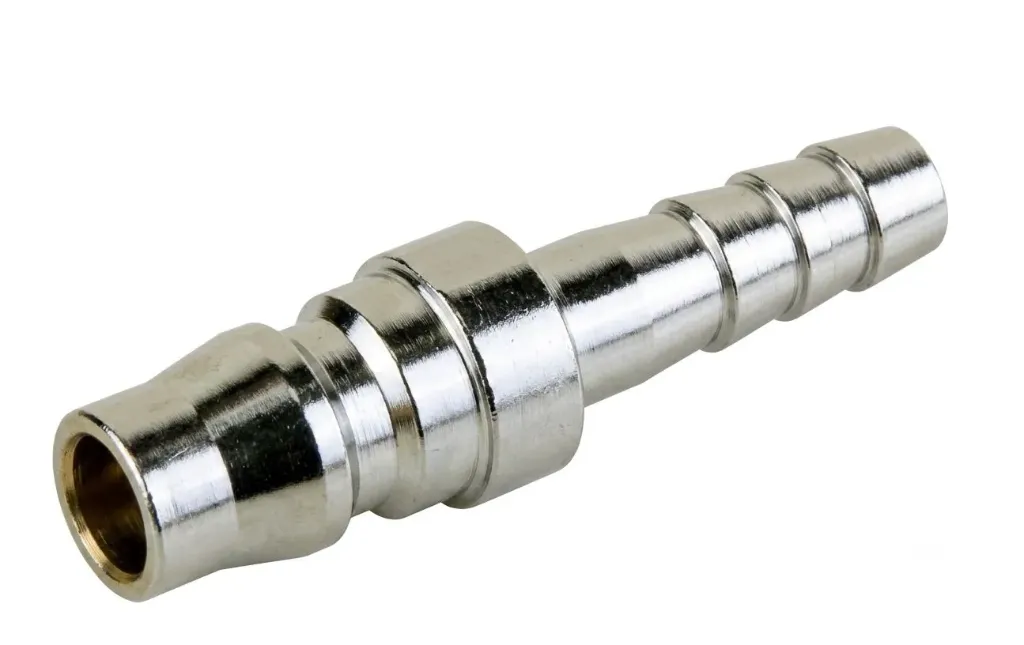

The AIRMIXS PH 20 is a precision-machined pneumatic quick-connect plug (nipple) featuring an integrated hose barb end. Designed for standard 1/4" body Japanese/Nitto-style quick couplers (SH 20, SM 20, SF 20 series), it inserts directly into 8mm (5/16") inner diameter flexible rubber or polyurethane air hoses. Constructed from durable chrome-plated or nickel-plated steel, it delivers high corrosion resistance, zero leakage, and dependable air supply connection for pneumatic tools, compressors, and air lines.
Feature / Specification | Detail |
|---|
Model Code | PH 20 (PH-20) |
Coupler Component | Quick Connect Plug / Nipple (Hose Barb End) |
Interchange Standard | Japanese / Nitto Profile (C-Type 20 Series) |
Body Size | 1/4" (20 Series) |
Connection Type | 8mm (5/16") Hose Barb (Fits 8mm ID Hose) |
Body Material | Hardened Chrome-Plated / Nickel-Plated Steel |
Valve Mechanism | Valveless / Open-Flow Design |
Working Pressure | 0 to 1.5 MPa (0 – 15 bar / 215 PSI) |
Maximum Pressure | 2.0 MPa (20 bar / 290 PSI) |
Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Compatible Media | Compressed Air, Inert Gases |
