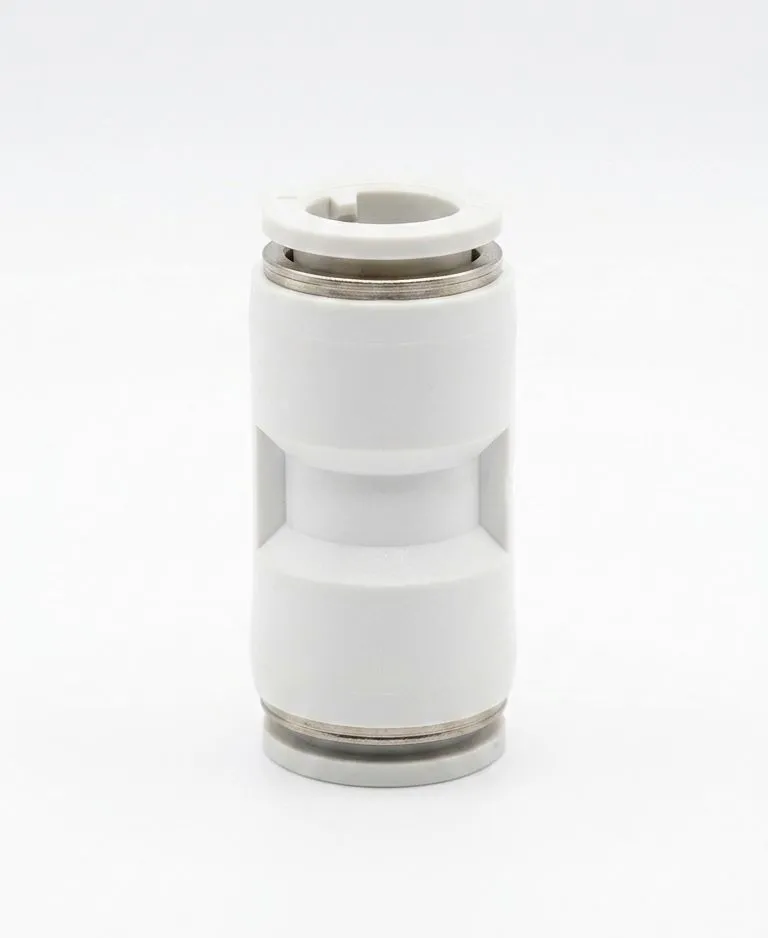

The AIRMIXS PG 16-14 Reducing Straight Union is a heavy-duty, one-touch push-in fitting engineered for high-demand industrial automation and fluid power setups. Designed specifically to create a seamless, inline reduction between a 16mm outer diameter (O.D.) pneumatic line and a 14mm O.D. line, this component maintains an optimized volumetric flow rate with minimal pressure drop across the connection.
Constructed from high-grade Polybutylene Terephthalate (PBT) and reinforced with stainless steel lock-claws, it provides exceptional gripping strength on polyurethane, polyethylene, and nylon tubing. The robust internal Nitrile Butadiene Rubber (NBR) seals prevent any micro-leaks under both high pressure and industrial vacuum applications. Its compact, symmetrical, oval-ring design allows for dense manifold configurations and quick, toolless maintenance.
Technical Attribute | Specification Details |
|---|
Fitting Type | Push-in / One-Touch Reducing Straight Union |
Port A Connection Size | 16 mm Tubing Outer Diameter (O.D.) |
Port B Connection Size | 14 mm Tubing Outer Diameter (O.D.) |
Applicable Fluid Medium | Compressed Air, Vacuum, Inert Gases |
Max. Operating Pressure | 1.0 MPa (approx. 145 PSI / 10 bar) |
Max. Vacuum Level | -100 kPa (-29.5 inHg) |
Operating Temperature Range | 0°C to 60°C (32°F to 140°F) No Freezing |
Body Material | High-Impact Polybutylene Terephthalate (PBT) |
Lock Claw Material | Stainless Steel |
Sealing Internal Material | Nitrile Butadiene Rubber (NBR) |
Release Sleeve Shape | Oval / Circular Ergonomic Collar |
Compliance | RoHS Compliant |
