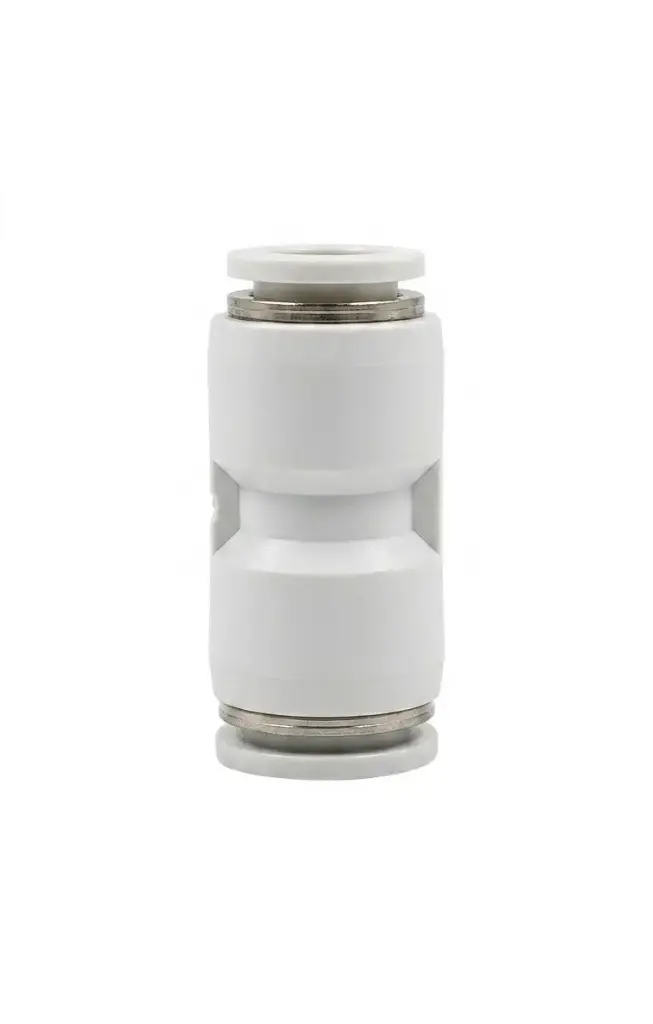

The AIRMIXS PG 14-12 union straight reducer allows for quick and simple pneumatic installations in tight spaces. It is specifically engineered to join two tubes of different sizes in the same direction, reducing from a 14mm line to a 12mm line. The fitting features an easy push-in connection that ensures an airtight seal without the need for additional tools.
Specification | Details |
|---|
Model | PG 14-12 |
Fitting Type | Straight Union Reducer |
Applicable Tube O.D. 1 | 14 mm (Large End) |
Applicable Tube O.D. 2 | 12 mm (Small End) |
Body Material | PBT Plastic & Polyurethane |
Lock Claw Material | Stainless Steel |
Operating Pressure | 0 to 1.0 MPa (0 to 145 psi) |
Operating Temperature | -10°C to +60°C (or 0°C to 60°C) |
Compatible Tubing | PU, PE, Nylon, PA, and PVC |
