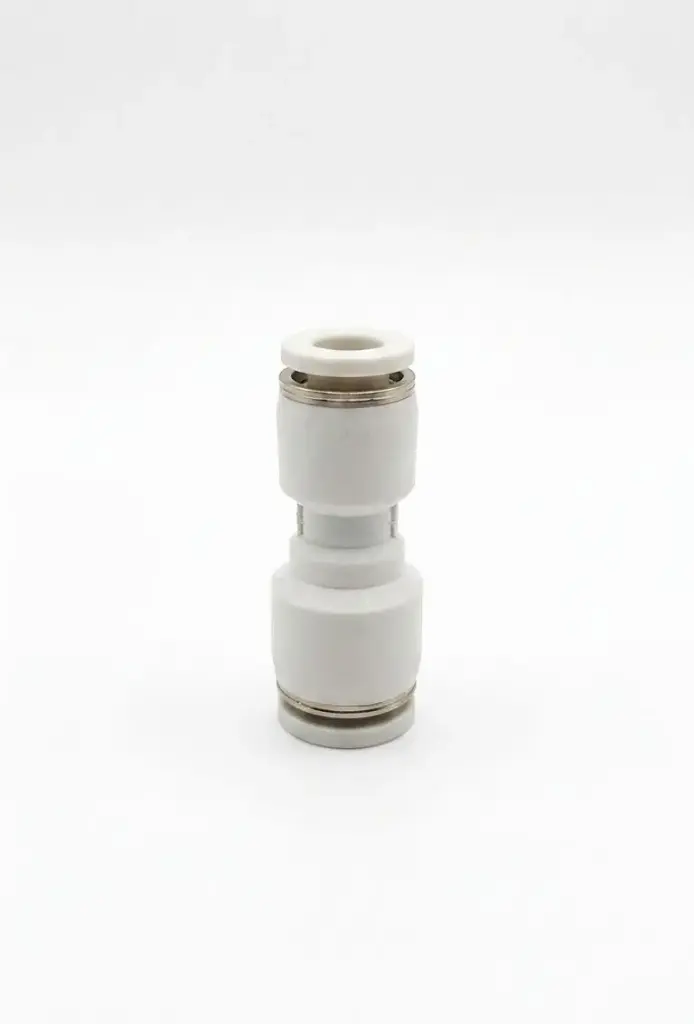

The AIRMIXS PG 08-06 is a high-performance Union Straight Reducerdesigned for seamless diameter transitions in pneumatic systems. This one-touch, push-to-connect fitting allows for the quick and effortless connection of an 8mm O.D. tube to a 6mm O.D. tube, significantly reducing installation and maintenance time.Its compact, lightweight design features a durable PBT resin body and a stainless steel lock claw that ensures a secure, leak-proof hold on various tubing materials, including PU, PA, PE, and PVC.
Feature | Specification |
|---|
Model Number | PG 08-06 |
Fitting Type | Union Straight Reducer (Push-to-Connect) |
Inlet Size (Tube O.D. 1) | 8mm |
Outlet Size (Tube O.D. 2) | 6mm |
Working Medium | Compressed Air, Vacuum, Water (no freezing) |
Working Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure (Vacuum) | -29.5 in Hg (-100 kPa) |
Temperature Range | 32°F to 140°F (0°C to 60°C) |
Body Material | PBT (Polybutylene Terephthalate) Resin |
Lock Claw Material | Stainless Steel (SUS) |
Seal Material | NBR (Nitrile Rubber) |
Release Ring | Acetal Plastic / POM |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE), PVC |
