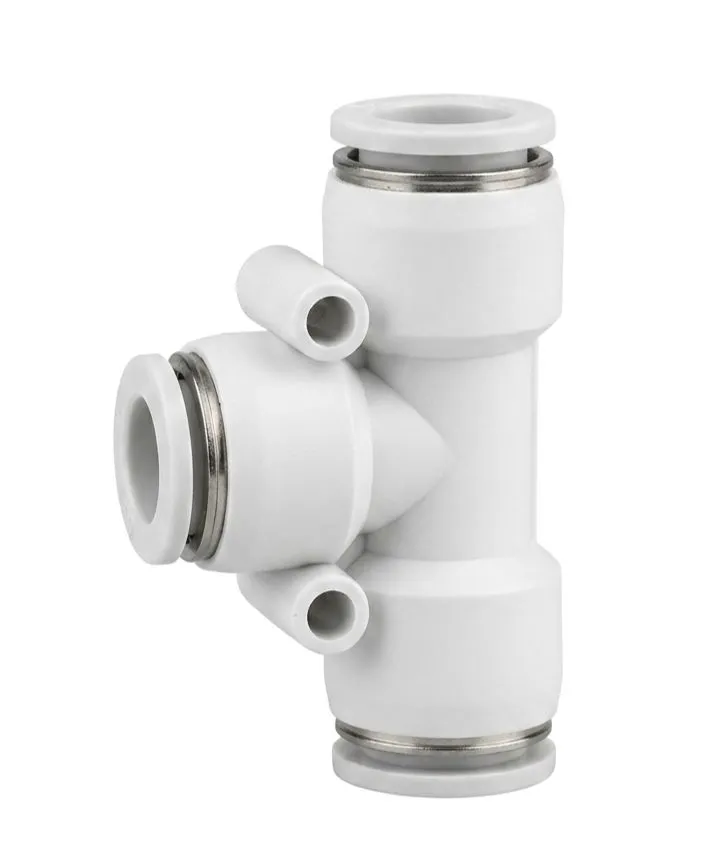

The PEG14-12 Unequal Union Tee Fitting is designed to split or combine pneumatic air lines while stepping down tube diameter sizes within fluid and automation systems. Featuring a 3-way T-configuration, it connects two 14mm outer diameter (O.D.) main air lines to a reduced 12mm outer diameter (O.D.) branch port.
Engineered with high-strength stainless steel internal lock claws and a durable composite housing, the PEG14-12 enables quick, tool-free one-touch hose insertion and release. It is an essential component for manifold distribution, control panels, and air line sizing adjustments without restricting system airflow.
Property | Technical Specification |
|---|
Model Code | PEG14-12 (PEG 14-12-14 / PEG14-14-12) |
Fitting Type | Unequal 3-Way Tee Reducer Union (Push-in / One-Touch) |
Main Port Size (Two Ends) | 14 mm Tube O.D. |
Branch Port Size (Center) | 12 mm Tube O.D. |
Fluid Compatibility | Compressed Air, Vacuum, Inert Gas, Water (Non-freezing) |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Negative / Vacuum Pressure | -100 kPa (-29.5 inHg / -0.95 bar) |
Maximum / Proof Pressure | 1.2 MPa to 1.5 MPa (~174 to 215 PSI) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Body Material | PBT Resin / POM Composite & Brass Elements |
Release Sleeve Material | POM Plastic (Grey / Blue / Black) |
Locking Mechanism | Stainless Steel (SUS) Gripping Claws |
Seals | NBR (Nitrile Rubber) |
