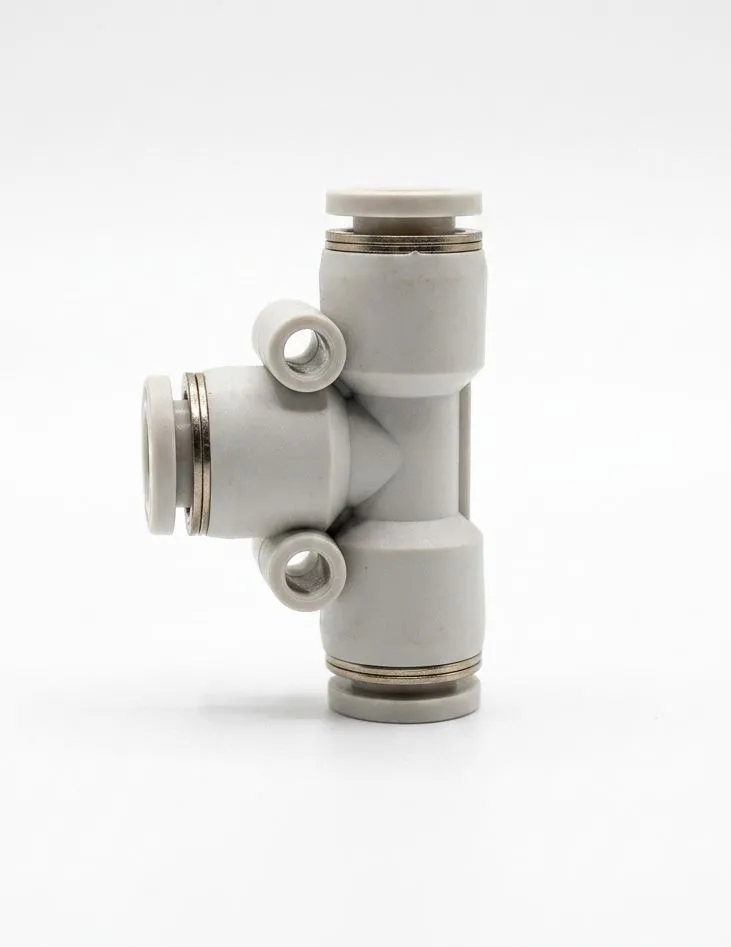

The PE 3/8 Pneumatic Union Tee Connector is an equal T-shaped push-to-connect fitting designed to branch a 3/8" compressed air line into two paths or combine two lines into a single flow path. Engineered for quick and reliable tubing connections in pneumatic automation and compressed air distribution, it features release sleeves on all three ends to allow tool-free hose attachment and disconnection.
Specification | Details |
|---|
Model / Part Number | PE 3/8 (PE-3/8 / PE-3/8 Inch) |
Fitting Type | Union Tee Equal Connector (Tube to Tube to Tube) |
Port Connections | 3 x 3/8 Inch Push-in Tube OD |
Fluid / Applicable Media | Compressed Air, Inert Gases, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10.2 kgf/cm²) |
Vacuum Pressure Rating | -29.5 inHg (-750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
