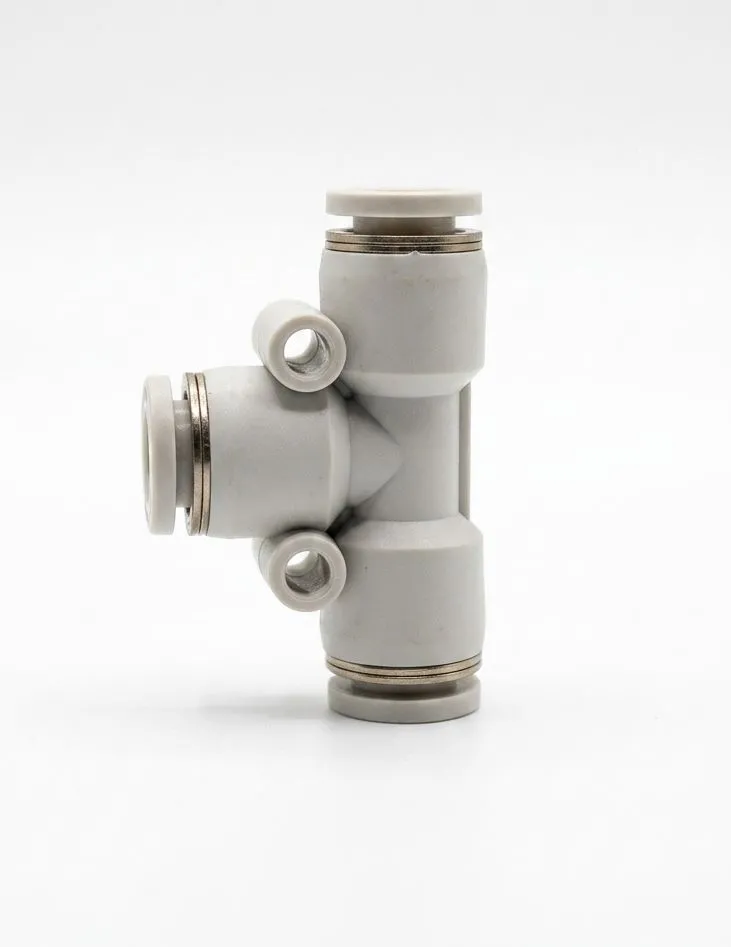

The PE14 Union Tee Connector is a high-capacity, three-way push-to-connect fitting designed for branching and distributing air supply lines using 14mm outer diameter (OD) tubing. Engineered for quick, tool-free assembly, it enables seamless connection across all three equal ports with a tight seal. Each connection point features an ergonomic release collar that allows effortless tube insertion and disengagement without damaging the tubing. Equipped with integrated mounting holes for secure surface anchoring, this union tee is ideal for industrial automation, pneumatic control circuits, and heavy-duty compressed air distribution lines.
Specification | Value |
|---|
Model | PE14 (or PE-14) |
Fitting Type | Union Tee / Equal Three-Way Push-In Connector |
Applicable Tube Outer Diameter (OD) | 14mm (Equal on all 3 ports) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~145 PSI) |
Proof / Max Pressure | 1.32 to 1.5 MPa |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Connection Method | One-Touch Push-In (All Ports) |
