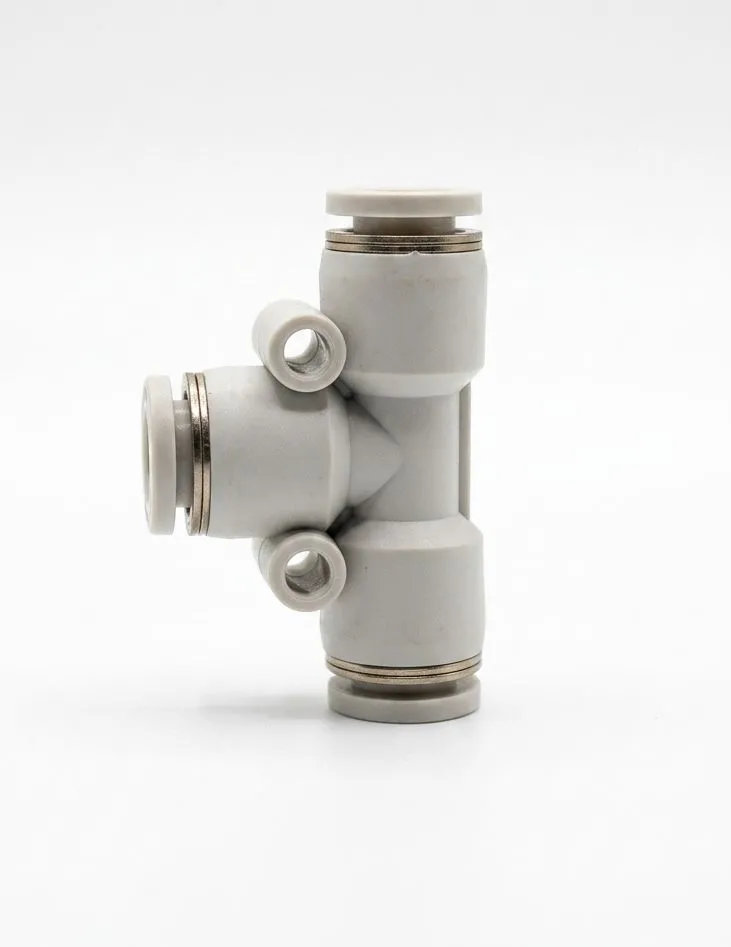

The PE 1/4 Pneumatic Union Tee Connector is an equal T-shaped push-to-connect fitting designed to branch a 1/4" compressed air line into two paths or merge two lines into a single connection. Built for secure and leak-proof hose connections in automation and pneumatic systems, it features quick-release release collars across all three ports to enable fast, tool-free tube insertion and disconnection.
Specification | Details |
|---|
Model / Part Number | PE 1/4 (PE-1/4 / PE-1/4 Inch) |
Fitting Type | Union Tee Equal Connector (Tube to Tube to Tube) |
Port Connections | 3 x 1/4 Inch Push-in Tube OD |
Fluid / Applicable Media | Compressed Air, Inert Gases, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10.2 kgf/cm²) |
Vacuum Pressure Rating | -29.5 inHg (-750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon, Polyethylene (PE) |
