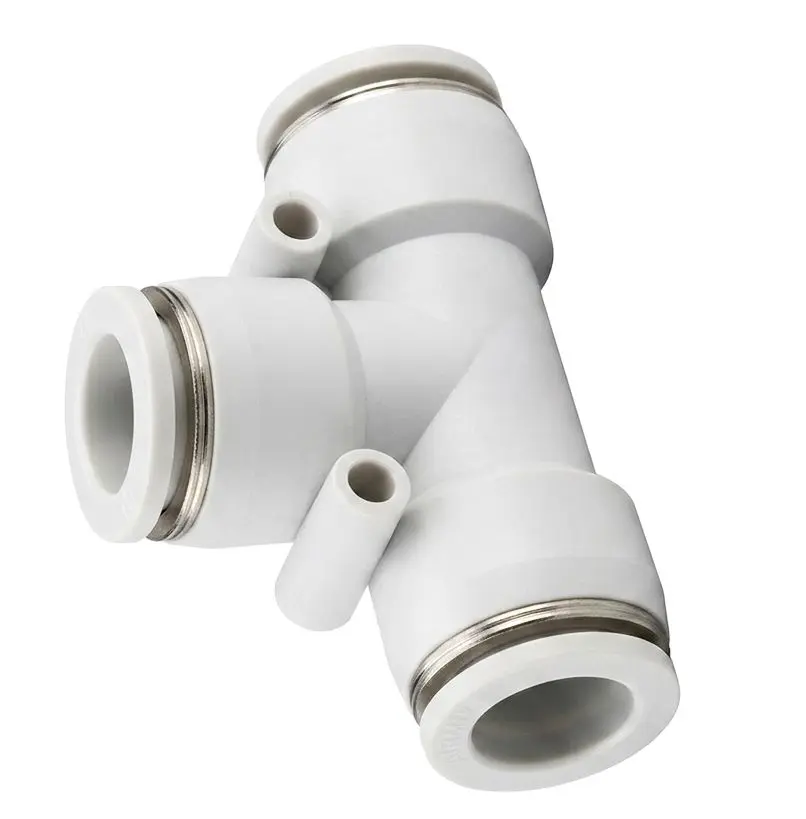

The AIRMIXS PE 16 is a heavy-duty, T-shaped union tee connector designed for high-capacity air distribution within large-scale pneumatic systems. It facilitates a rapid, tool-free connection between three separate 16mm O.D. tubes of equal diameter.
Engineered with a robust PBT resin body and stainless steel locking claws, the PE 16 is built to provide maximum stability and longevity in demanding industrial environments. This large-format fitting is ideal for main airline branches and high-flow automation equipment. The integrated mounting holes allow the fitting to be fixed securely to equipment, preventing line movement and vibration fatigue. The ergonomic white release ring ensures quick tube disconnection without damaging the tubing, making it an essential component for high-flow automation and primary air distribution manifolds.
Feature | Specification |
|---|
Model Number | PE 16 |
Connection Type | Tube-to-Tube-to-Tube (Equal Tee) |
Tube Outer Diameter (O.D.) | 16 mm (All three ports) |
Fluid Type | Compressed Air, Vacuum, Water (no freezing) |
Operating Pressure | 0 to 1.0 MPa (0 to 150 psi) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Proof Pressure | 1.5 MPa (217 psi) |
Temperature Range | 0 to 60°C (32 to 140°F) |
