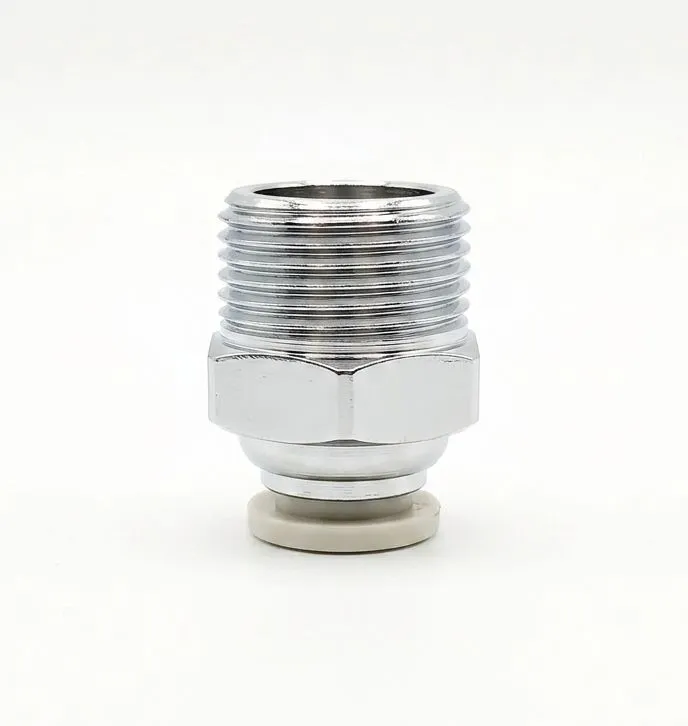

The AIRMIXS PCF 5/16-3/8 is a high-grade, male straight pneumatic connector engineered for quick, secure, and leak-free inline tube-to-thread setups. Featuring an efficient one-touch push-to-connect mechanism, it supports instant manual tubing integration and simple connection updates without requiring specialized assembly tools.
Its robust body delivers exceptional wear resistance, minimal weight, and maximum structural integrity under standard industrial working pressures. Designed to streamline workflow routing and simplify air-line setups, this fitting guarantees reliable sealing performance and a prolonged service life in dense pneumatic arrays, control manifolds, and automated factory machinery.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Code | PCF 5/16-3/8 |
Fitting Type | Male Straight Connector (Push-In to Male Thread) |
Applicable Fluid Type | Compressed Air, Vacuum (Not intended for alternative fluids) |
Working Pressure Range | $0 \text{ to } 1.0 \text{ MPa}$($0 \text{ to } 150 \text{ psi}$) |
Proof Pressure | $3.0 \text{ MPa}$($435 \text{ psi}$) |
Negative Pressure Range | $-100 \text{ kPa}$($-29.5 \text{ in Hg}$) |
Working Temperature Range | $0 \text{ to } 60^\circ\text{C}$($32 \text{ to } 140^\circ\text{F}$) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Engineering Plastic (POM) |
Locking Claw Material | Stainless Steel (SUS) |
Seal / O-Ring Material | NBR (Nitrile Rubber) |
Recommended Tube Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
