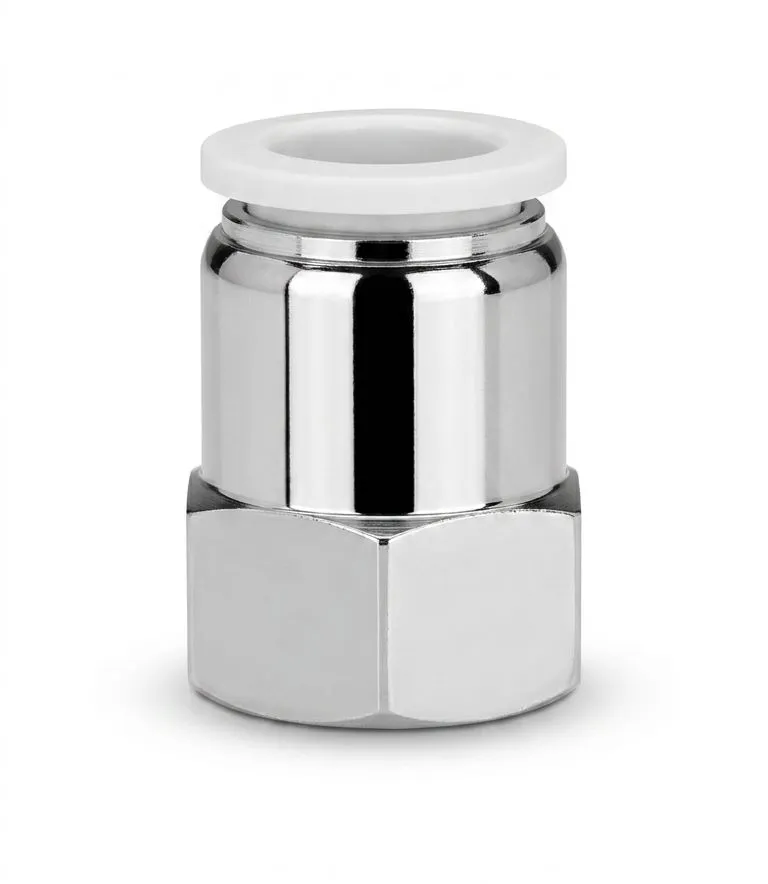

The AIRMIXS PCF 16-04 is a heavy-duty, straight female pneumatic connector engineered for reliable, secure, and leak-free inline tube-to-thread installations. Featuring an intuitive one-touch push-to-connect mechanism, it allows for instant manual tubing insertion and effortless connection without requiring specialized installation tools.
Its robust housing provides exceptional wear resistance, light weight, and maximum structural durability under standard industrial working pressures. Designed to optimize high-flow air setups and streamline airline piping networks, this fitting ensures highly dependable sealing performance and an extended service life in demanding pneumatic systems, control manifolds, and heavy machinery automation.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Code | PCF 16-04 |
Fitting Type | Female Straight Connector (Push-In to Female Thread) |
Applicable Fluid Type | Compressed Air, Vacuum (Not intended for alternative fluids) |
Working Pressure Range | $0 \text{ to } 1.0 \text{ MPa}$($0 \text{ to } 150 \text{ psi}$) |
Proof Pressure | $3.0 \text{ MPa}$($435 \text{ psi}$) |
Negative Pressure Range | $-100 \text{ kPa}$($-29.5 \text{ in Hg}$) |
Working Temperature Range | $0 \text{ to } 60^\circ\text{C}$($32 \text{ to } 140^\circ\text{F}$) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Engineering Plastic (POM) |
Locking Claw Material | Stainless Steel (SUS) |
Seal / O-Ring Material | NBR (Nitrile Rubber) |
Recommended Tube Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
