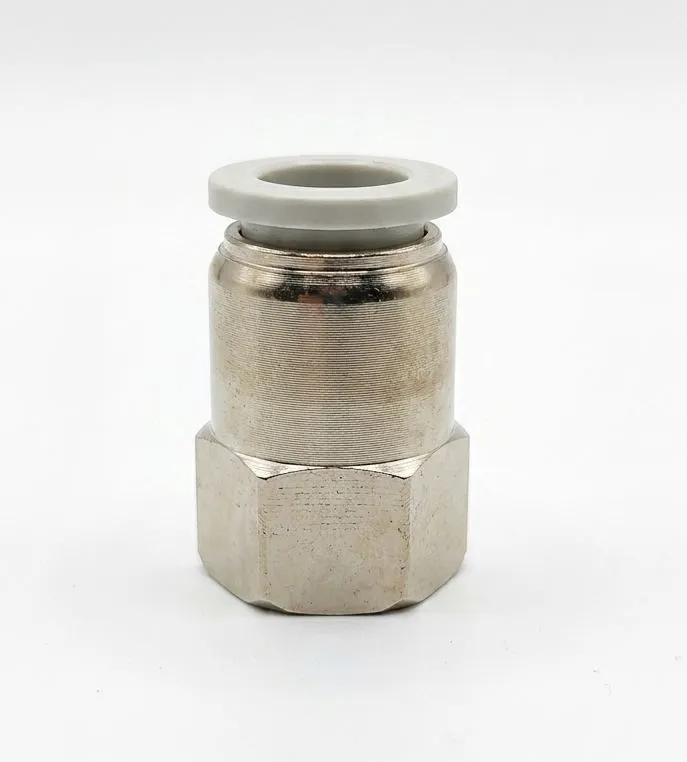

The AIRMIXS PCF 12-03 is an industrial-grade, straight female push-to-connect fitting designed for connecting metric pneumatic tubing directly to a male threaded connection. As seen in AIRMIXS PCF 12-03.jpg, this component features a robust, full nickel-plated brass body coupled with a high-strength composite release collar, providing an exceptional leak-proof seal for 12mm outer diameter (OD) tubing.
Its straight, compact configuration makes it an ideal solution for tight spaces within pneumatic piping circuits, control valves, and air cylinders. Engineered for long-term reliability in automated production lines, packaging systems, and heavy-duty industrial machinery, it ensures maximum flow efficiency and effortless maintenance.
Specification | Technical Data |
|---|
Model Number | PCF 12-03 |
Fitting Type | Straight Female Connector |
Port A (Tube Connection) | 12mm Tube OD |
Port B (Thread Connection) | 3/8" PT / BSPT / G (Female Thread) |
Body Material | Nickel-Plated Brass |
Release Collar Material | Industrial Polymer Composite (Grey) |
Applicable Tubing Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Fluid | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Negative Pressure Range | -29.5 in Hg (-100 kPa) |
Operating Temperature Range | 32°F to 140°F / 0°C to 60°C |
