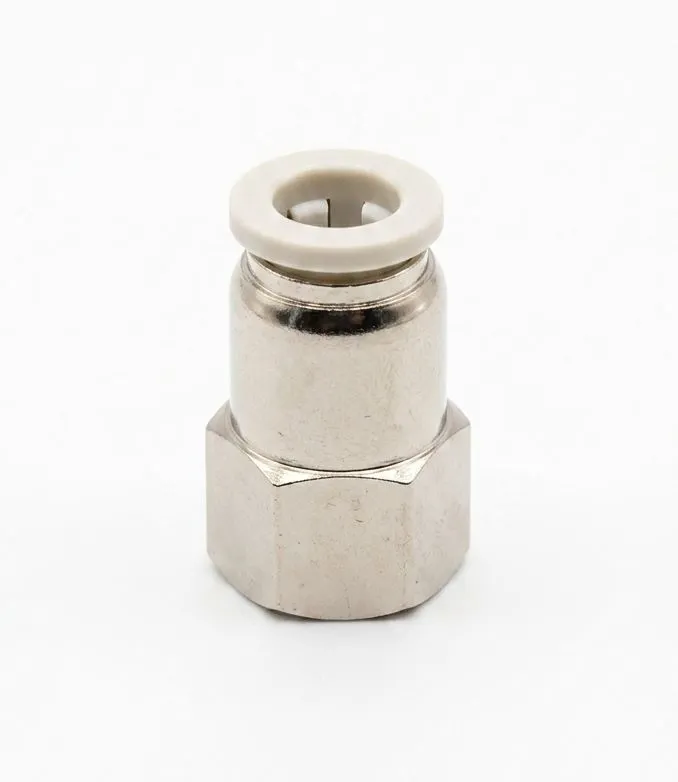

The AIRMIXS PCF12-01 Female Straight Connector is a heavy-duty push-to-connect fitting engineered to join a 12mm pneumatic tube to a 1/8" male threaded port or fitting.
Designed for high-flow industrial air distribution lines, automation setups, and heavy pneumatic equipment, it features a tool-free push-in connection on one side and a precise 1/8" female thread on the other. Its internal locking mechanism holds 12mm tubing securely under operating pressure while permitting smooth, quick disconnection using the release sleeve.
Specification | Value / Technical Detail |
|---|
Model Code | PCF12-01 |
Fitting Type | Female Straight Connector |
Tube Connection Outer Diameter (OD) | 12 mm |
Thread Connection | 1/8" BSPT / PT Female Thread |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa to 1.5 MPa |
Vacuum / Negative Pressure | -100 kPa (-29.5 inHg / -750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
