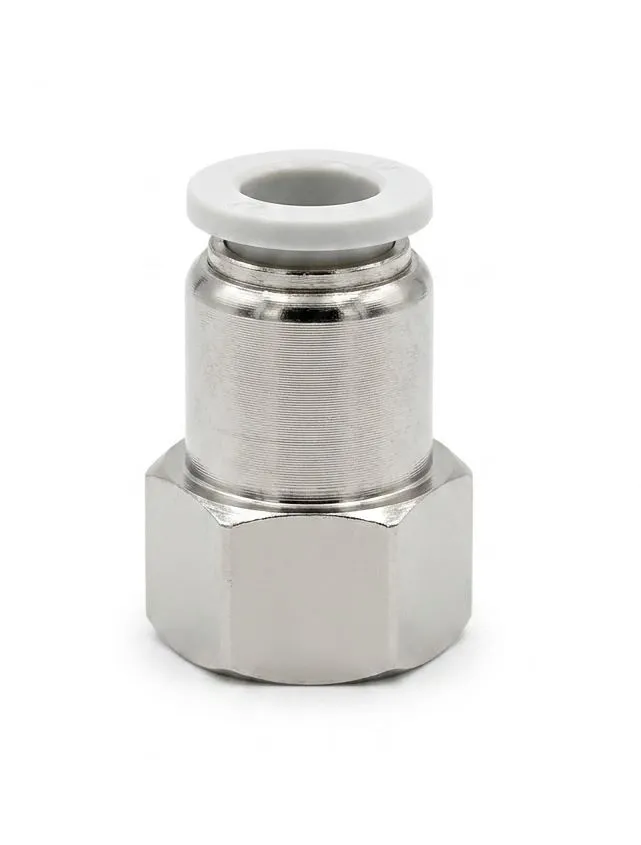

The AIRMIXS PCF 10-03 is a high-grade female straight one-touch pneumatic connector meticulously engineered for reliable, leak-free performance in demanding industrial automation and fluid power setups. Constructed with a premium nickel-plated brass body, it provides exceptional resistance to corrosion, wear, and harsh factory conditions, guaranteeing an extended operational lifespan.
Designed with an intuitive push-to-connect mechanical interface, this fitting allows for immediate manual connection and quick disconnection of pneumatic tubing without requiring specialized tools. Its high-strength composite release sleeve ensures easy decoupling even under pressure. This component is optimized for modern automation machinery, packaging lines, and textile equipment where fast deployment, safety, and minimized structural downtime are critical priorities.
Property | Value / Specification |
|---|
Fitting Connection Type | One-Touch Push-In to Female Threaded Connection |
Configuration Profile | Hexagonal Female Straight |
Applicable Fluid Medium | Compressed Air, Industrial Vacuum, Inert Gases |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Max Vacuum Rating | -29.5 in Hg (-100 kPa) |
Temperature Tolerance Range | 32°F to 140°F (0°C to 60°C) |
Material Composition (Body) | Heavy-duty Nickel-Plated Brass |
Material Composition (Release Ring) | High-strength Engineering Resin / Plastic |
Internal Seal Material | NBR (Buna-N) |
Internal Lock Ring | Stainless Steel |
Compatible Hose Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
