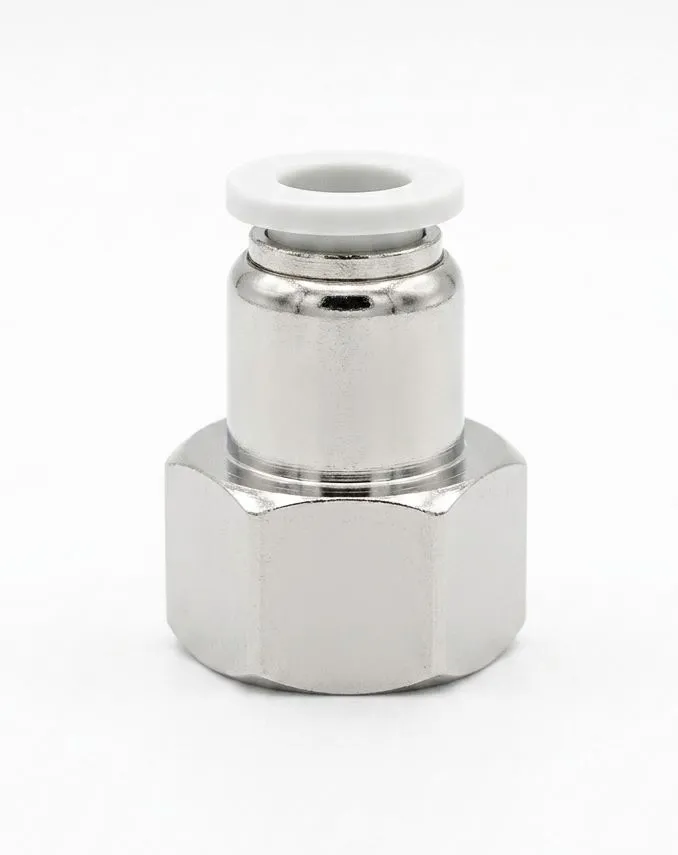

The AIRMIXS PCF 08-03 is a high-grade female straight one-touch pneumatic connector engineered for dependable, leak-free service within industrial automation, fluid control, and air line systems. Built with a premium nickel-plated brass hexagonal body, it provides exceptional resistance to corrosion, wear, and mechanical fatigue, ensuring a prolonged operational lifespan in demanding factory environments.
Featuring an intuitive push-to-connect mechanism, this component allows for instant manual connection and quick disconnection of pneumatic lines without the need for tools. The highly durable resin release collar ensures smooth decoupling, while the internal engineering ensures maximum flow performance with zero pressure drop. It is highly optimized for packaging machinery, pneumatic robotics, and assembly line distribution blocks where rapid deployment and absolute reliability are critical.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model Code | PCF 08-03 |
Fitting Type | Female Straight Connector (Push-In to Female Thread) |
Applicable Fluid Type | Compressed Air, Vacuum (Not intended for alternative fluids) |
Working Pressure Range | $0 \text{ to } 1.0 \text{ MPa}$($0 \text{ to } 150 \text{ psi}$) |
Proof Pressure | $3.0 \text{ MPa}$($435 \text{ psi}$) |
Negative Pressure Range | $-100 \text{ kPa}$($-29.5 \text{ in Hg}$) |
Working Temperature Range | $0 \text{ to } 60^\circ\text{C}$($32 \text{ to } 140^\circ\text{F}$) |
Body Material | Nickel-Plated Brass |
Release Sleeve Material | Engineering Plastic (POM) |
Locking Claw Material | Stainless Steel (SUS) |
Seal / O-Ring Material | NBR (Nitrile Rubber) |
Recommended Tube Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
