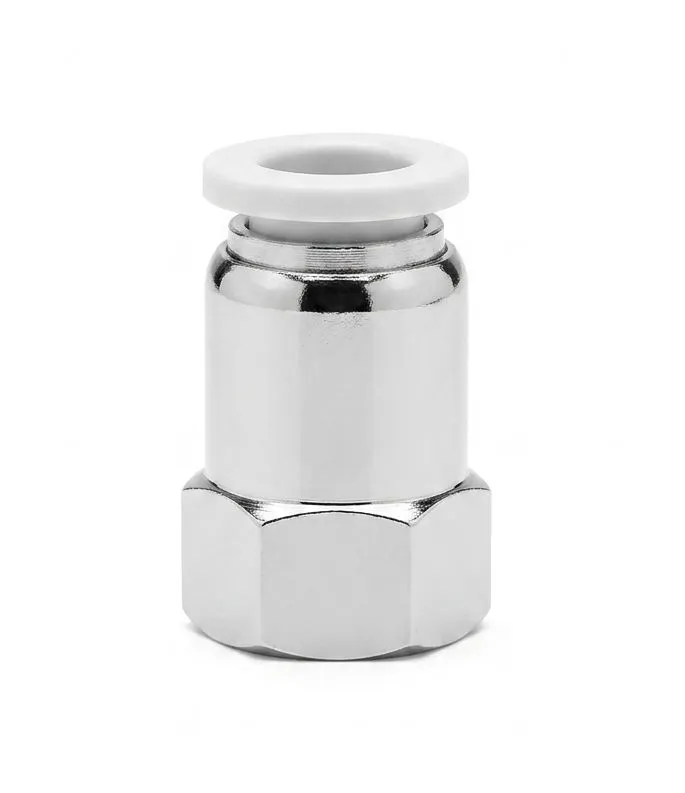

The AIRMIXS PCF 08-01 is a high-performance female straight one-touch pneumatic connector engineered for dependable, leak-free service within industrial automation, fluid control, and air line systems. Built with a premium nickel-plated brass hexagonal body, it provides exceptional resistance to corrosion, wear, and mechanical fatigue, ensuring a prolonged operational lifespan in demanding factory environments.
Featuring an intuitive push-to-connect mechanism, this component allows for instant manual connection and quick disconnection of pneumatic lines without the need for tools. The highly durable resin release collar ensures smooth decoupling, while the internal engineering ensures maximum flow performance with zero pressure drop. It is highly optimized for packaging machinery, pneumatic robotics, and assembly line distribution blocks where rapid deployment and absolute reliability are critical..
Property | Value / Specification |
|---|
Fitting Connection Type | One-Touch Push-In to Female Threaded Connection |
Configuration Profile | Hexagonal Female Straight |
Applicable Fluid Medium | Compressed Air, Industrial Vacuum, Inert Gases |
Operating Pressure Range | 0 to 150 PSI (0 to 1.0 MPa) |
Max Vacuum Rating | -29.5 in Hg (-100 kPa) |
Temperature Tolerance Range | 32°F to 140°F (0°C to 60°C) |
Material Composition (Body) | Heavy-duty Nickel-Plated Brass |
Material Composition (Release Ring) | High-strength Engineering Resin / Plastic |
Internal Seal Material | NBR (Buna-N) |
Internal Lock Ring | Stainless Steel |
Compatible Hose Material | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
