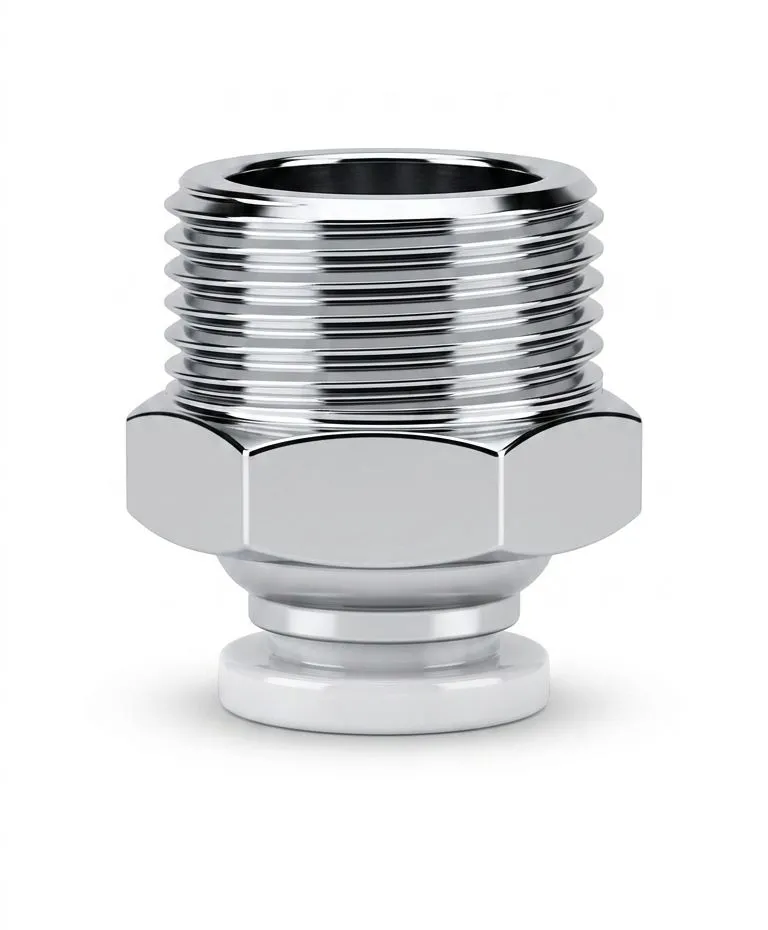

The PC5/16-1/8 Male Straight Fitting is a push-to-connect inline adapter designed to connect a 5/16" outer diameter (5/16" O.D. / ~8mm) flexible air tube directly into a 1/8" female threaded port (NPT or BSPT/R). Equipped with an external hexagonal body, it enables fast wrench tightening and smooth installation in tight pneumatic assemblies.
Constructed with a nickel-plated brass threaded body, high-strength PBT composite housing, stainless steel internal lock claws, and pre-applied thread sealant (or NBR O-ring), it ensures a tight, leak-free seal. This fitting is ideal for pneumatic valves, air cylinders, manifolds, and general automation equipment.
Property | Technical Specification |
|---|
Model Code | PC5/16-1/8 (PC 5/16-1/8 / PC 5/16-N01) |
Fitting Type | Male Straight Connector (Push-In / One-Touch) |
Applicable Tube Outer Diameter (O.D.) | 5/16 Inch (~7.94 mm / 8 mm) |
Thread Size & Gender | 1/8" Male Thread (NPT / BSPT / R 1/8) |
Fluid Compatibility | Compressed Air, Industrial Vacuum, Inert Gas |
Operating Pressure Range | 0 to 1.0 MPa (0 to 10 bar / ~150 PSI) |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Proof / Burst Pressure | 1.5 MPa (~215 PSI) |
Operating Temperature | 0°C to +60°C (32°F to 140°F) |
Applicable Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Body / Thread Material | PBT Composite Resin & Nickel-Plated Brass |
Locking Mechanism | Stainless Steel (SUS 304) Gripping Claws |
Seals | Pre-coated Thread Sealant & NBR O-Rings |
