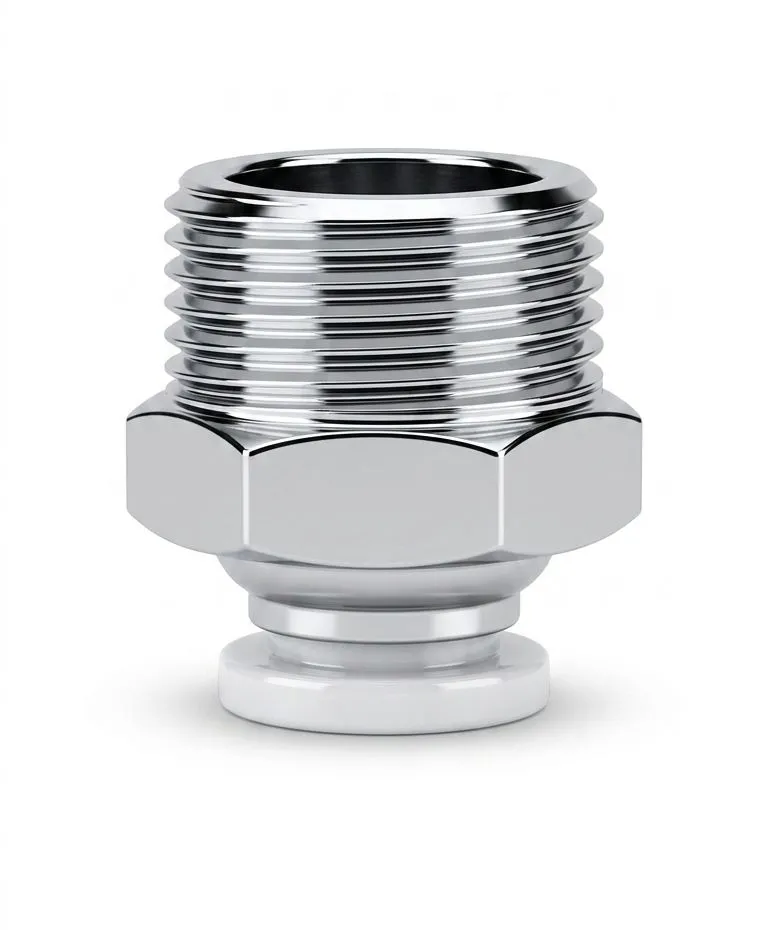

The PC 5/16-1/4 Male Straight Push-to-Connect Fitting is an industrial-grade, one-touch pneumatic connector designed to join 5/16" Outer Diameter (OD) tubing to a 1/4" NPT female threaded port in a straight line.
Featuring a durable nickel-plated brass body and an ergonomic release sleeve, this fitting allows tool-free tubing insertion and fast disconnections. The internal stainless steel lock claw grips the tubing firmly to prevent accidental pop-outs under pressure, while the pre-coated Teflon thread sealant ensures an airtight, leak-free connection upon installation without needing additional sealing tape. Ideal for automation systems, compressed air lines, control panels, and pneumatic tools.
Specification | Details |
|---|
Model / Part Number | PC 5/16-1/4 (PC 5/16-N02) |
Fitting Type | Push-to-Connect Male Straight Connector |
Tube Connection (Size A) | 5/16 in OD Push-In |
Thread Connection (Size B) | 1/4 in Male NPT (Teflon pre-coated) |
Compatible Tubing Materials | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Fluid Media | Compressed Air, Vacuum, Water (non-freezing) |
Operating Pressure | 0 to 150 PSI (0 to 1.0 MPa) |
Proof Pressure | 435 PSI (3.0 MPa) |
Vacuum Pressure Rating | -29.5 in Hg (-100 kPa) |
Operating Temperature | 32°F to 140°F (0°C to 60°C) |
Body & Thread Material | Nickel-Plated Brass (Anti-corrosion) |
Release Ring | POM Plastic (Elliptical design for tight spaces) |
Locking Claw Material | Stainless Steel (SUS) |
Sealing Ring | NBR O-Ring |
