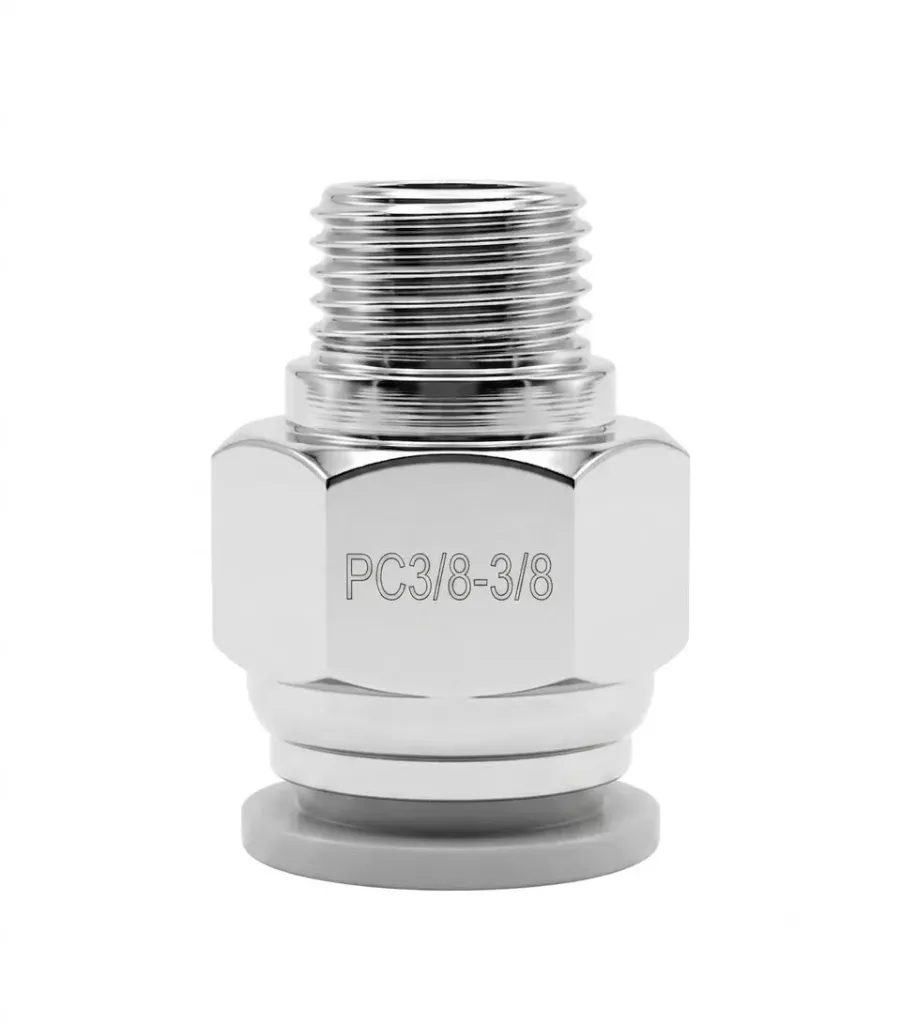

The PC3/8-3/8 is a standard straight male push-to-connect pneumatic fitting engineered for quick, secure, and tool-free connections in compressed air systems. Designed with a 3/8" push-in tube inlet on one end and a 3/8" male thread on the opposite end, it delivers a leak-resistant seal ideal for factory automation, air tools, and pneumatic control assemblies. The ergonomic release ring enables fast tube insertion and hassle-free disconnection without causing damage to the tubing.
Technical Specification | Parameter / Value |
|---|
Model Number | PC3/8-3/8 |
Fitting Type | Straight Male Connector / Push-in Fitting |
Tube OD (A Port) | 3/8 Inch (9.52 mm) |
Thread Size (B Port) | 3/8 Inch NPT / Male Thread |
Fluid Media | Compressed Air, Vacuum |
Working Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10 bar) |
Proof Pressure | Up to 435 PSI (3.0 MPa) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Sealing Method | Pre-coated Thread Sealant / O-ring Seal |
