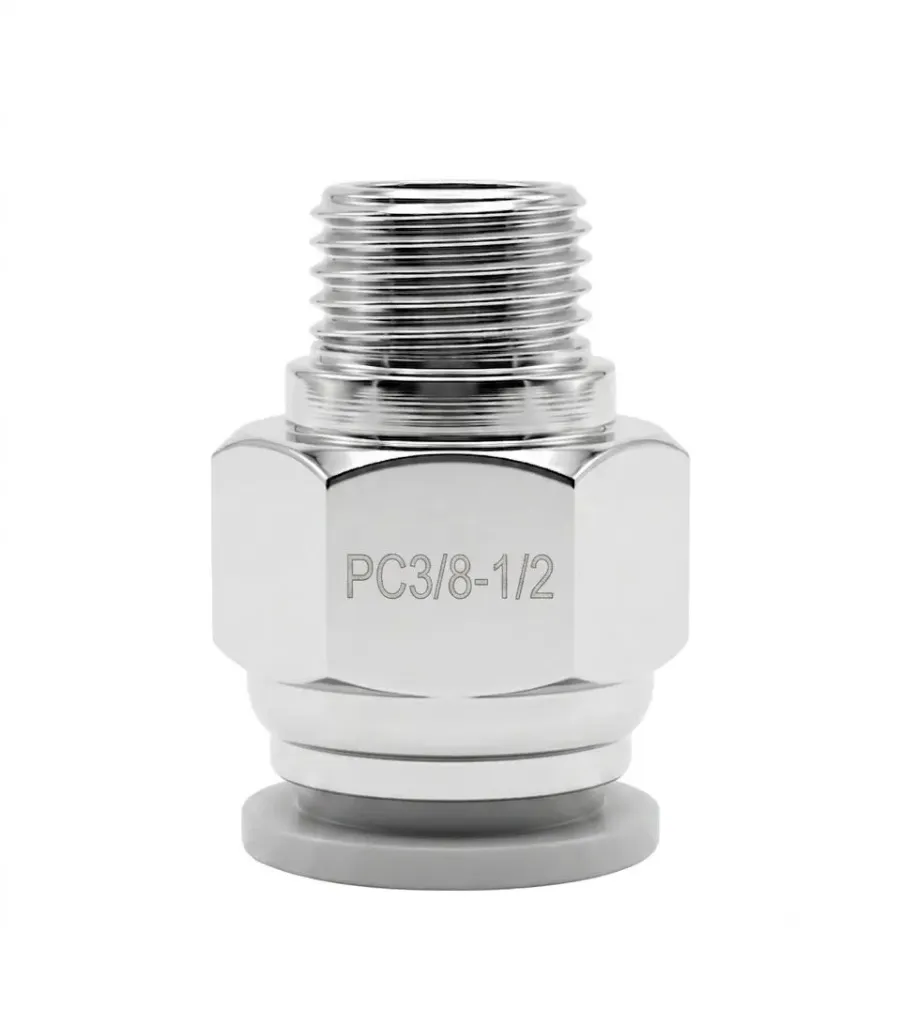

The PC3/8-1/2 is a heavy-duty, straight male push-to-connect pneumatic fitting designed for fast, tool-free installation in compressed air and vacuum systems. Featuring a 3/8" push-in tube connection on one end and a 1/2" male thread on the other, it provides a secure, leak-free joint for industrial automation, air tools, and pneumatic equipment. The ergonomic release collar allows for quick tube insertion and effortless disconnection without damaging the tubing.
Technical Specification | Parameter / Value |
|---|
Model Number | PC3/8-1/2 |
Fitting Type | Straight Male Connector / Push-in Fitting |
Tube OD (A Port) | 3/8 Inch (9.52 mm) |
Thread Size (B Port) | 1/2 Inch NPT / Male Thread |
Fluid Media | Compressed Air, Vacuum |
Working Pressure Range | 0 to 150 PSI (0 to 1.0 MPa / 10 bar) |
Proof Pressure | Up to 435 PSI (3.0 MPa) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Sealing Method | Pre-coated Thread Sealant / O-ring Seal |
