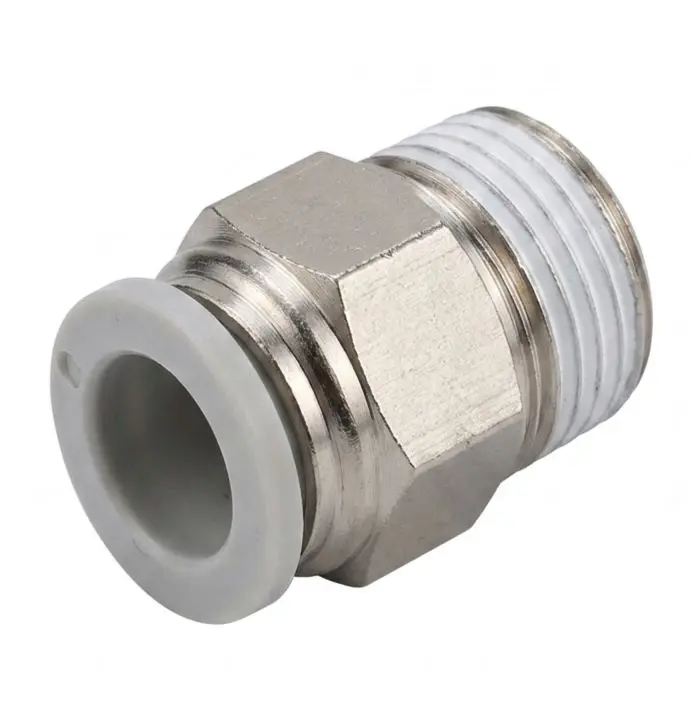

The AIRMIXS PC14-04 is a premium straight male pneumatic fitting engineered for rapid assembly and reliable sealing in industrial automation. This "Push-In" connector allows for instantaneous tubing connection and disconnection without the need for tools. It features a nickel-plated brass body for superior corrosion resistance and a pre-applied thread sealant (O-ring or Teflon) to ensure a leak-proof interface with female ports. Ideal for heavy-duty machinery, packaging lines, and large-scale pneumatic circuits requiring high air volume.
Feature | Specification |
|---|
Model Number | PC14-04 |
Connection Type | Tube to Male Thread (Straight) |
Tube Outer Diameter (OD) | 14mm |
Thread Size | 1/2" PT / NPT / G (Standard 04 size) |
Body Material | Nickel-Plated Brass |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Working Pressure | 0 ~ 1.0 MPa (0 ~ 150 PSI) |
Negative Pressure | -100 kPa (-29.5 in Hg) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Seal Type | Pre-applied thread sealant or O-ring |
