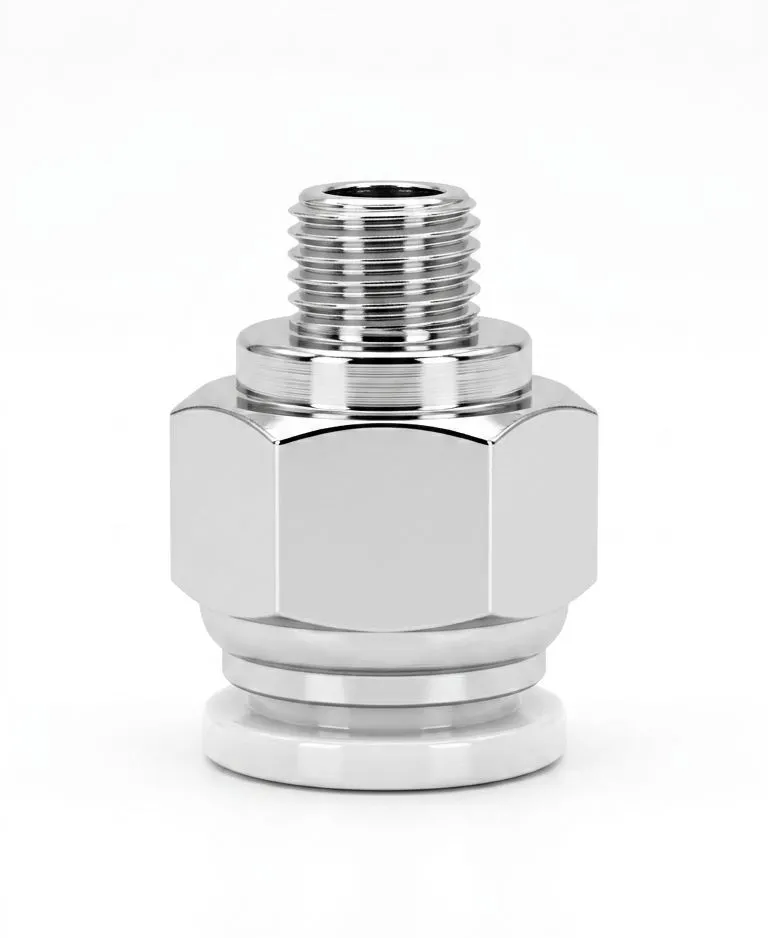

The AIRMIXS PC 12-01 is a commercial-grade, metric straight male push-to-connect fitting engineered for efficient, leak-free performance in modern industrial automation and pneumatic systems. Constructed with a premium nickel-plated brass body, it features a polished, reflective chrome-colored finish that provides exceptional corrosion resistance and a sharp, high-end aesthetic on your machinery.
This fitting utilizes an intuitive, tool-free push-in mechanism to grip 12mm outer diameter tubing securely, preventing any slippage or pressure drops. The 1/8" male thread comes equipped with pre-applied thread sealant or an integrated O-ring to guarantee an instantaneous, airtight connection to standard female ports, reducing system assembly time.
Parameter | Specification |
|---|
Brand | AIRMIXS |
Model | PC 12-01 |
Fitting Type | Male Straight Connector |
Connection Thread | 1/8" PT / BSPT / G (Male Thread) |
Applicable Tube OD | 12mm |
Fluid Type | Compressed Air, Vacuum, Water |
Body Material | Nickel-Plated Brass (Chrome Finish) |
Release Button Material | Heavy-duty Polyoxymethylene (POM) / Polyurethane |
Operating Pressure Range | 0 ~ 150 PSI (0 ~ 1.0 MPa) |
Negative Pressure | -29.5 in Hg (-100 kPa) |
Operating Temperature | 32 ~ 140°F (0 ~ 60°C) |
Lock Claw | Stainless Steel (SUS) |
Recommended Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
