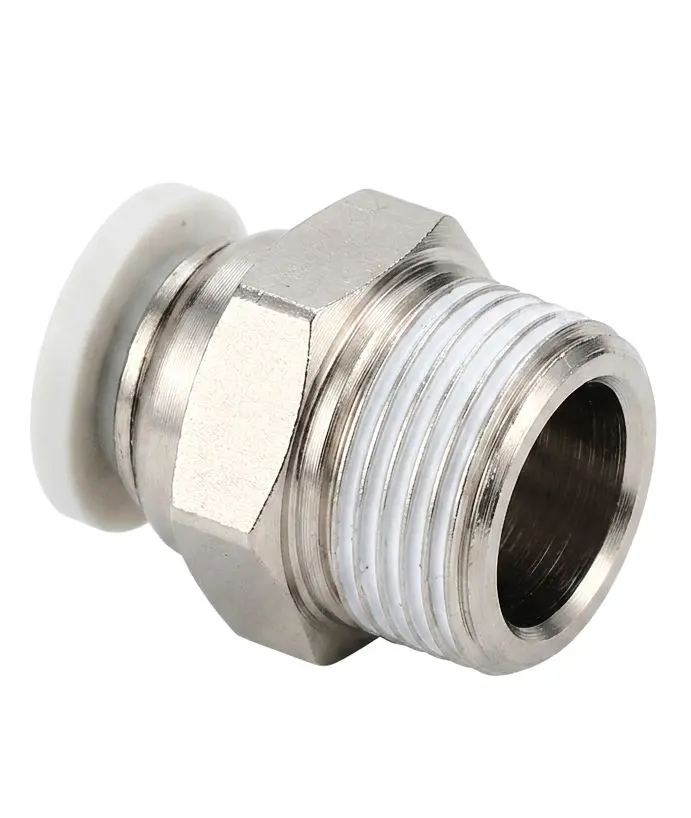

The AIRMIXS PC10-04 is a premium, one-touch pneumatic fitting designed for high-volume air distribution and heavy-duty industrial automation. It facilitates a robust, leak-proof connection between 10mm OD tubing and 1/2" BSPT threaded ports, making it the preferred choice for main air supply headers, large-bore cylinders, and high-flow manifolds. Constructed with a precision-machined nickel-plated brass body and a high-tension stainless steel lock claw, it ensures a secure grip even under extreme vibration and pressure spikes. The ergonomic white PBT release ring allows for instantaneous, tool-free tube changes, while pre-applied Teflon sealant on the threads guarantees an airtight seal immediately upon installation
Specification | Details |
|---|
Model Number | PC10-04 |
Fitting Type | Straight Male Thread (Push-to-Connect) |
Tube Connection | 10mm Outer Diameter (OD) |
Thread Connection | 1/2" BSPT (R 1/2) |
Body Material | Nickel-Plated Brass |
Release Sleeve | PBT Resin / POM (White) |
Internal Claw | Stainless Steel (SUS304) |
Thread Sealant | Pre-applied Teflon (PTFE) Coating |
Operating Pressure | 0 – 150 PSI (0 – 1.0 MPa) |
Negative Pressure | -29.5 in Hg (-100 kPa) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Compatible Media | Compressed Air, Vacuum |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
