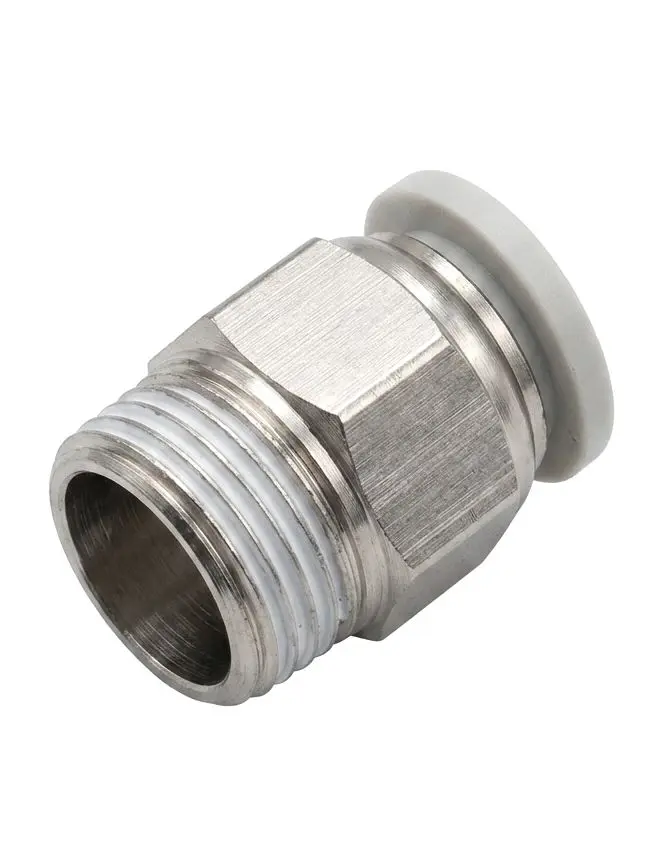

The AIRMIXS PC10-03 is a high-capacity, one-touch pneumatic fitting designed for demanding industrial automation environments. It enables a secure, high-volume connection between 10mm OD tubing and 3/8" BSPT threaded ports, making it ideal for large-bore cylinders and high-flow air manifolds. Constructed with a heavy-duty nickel-plated brass body and a precision stainless steel lock claw, it ensures an airtight grip even under high pressure and mechanical vibration. The ergonomic white release collar facilitates instant, tool-free tube changes, and the pre-applied Teflon sealant on the threads ensures a leak-proof seal immediately upon installation.
Specification | Details |
|---|
Model Number | PC10-03 |
Fitting Type | Straight Male Thread (Push-to-Connect) |
Tube Connection | 10mm Outer Diameter (OD) |
Thread Connection | 3/8" BSPT (R 3/8) |
Body Material | Nickel-Plated Brass |
Release Sleeve | PBT Resin / Acetal (White) |
Internal Claw | Stainless Steel (SUS304) |
Thread Sealant | Pre-applied Teflon (PTFE) |
Operating Pressure | 0 – 150 PSI (0 – 1.0 MPa) |
Negative Pressure | -29.5 in Hg (-100 kPa) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Compatible Media | Compressed Air, Vacuum |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
