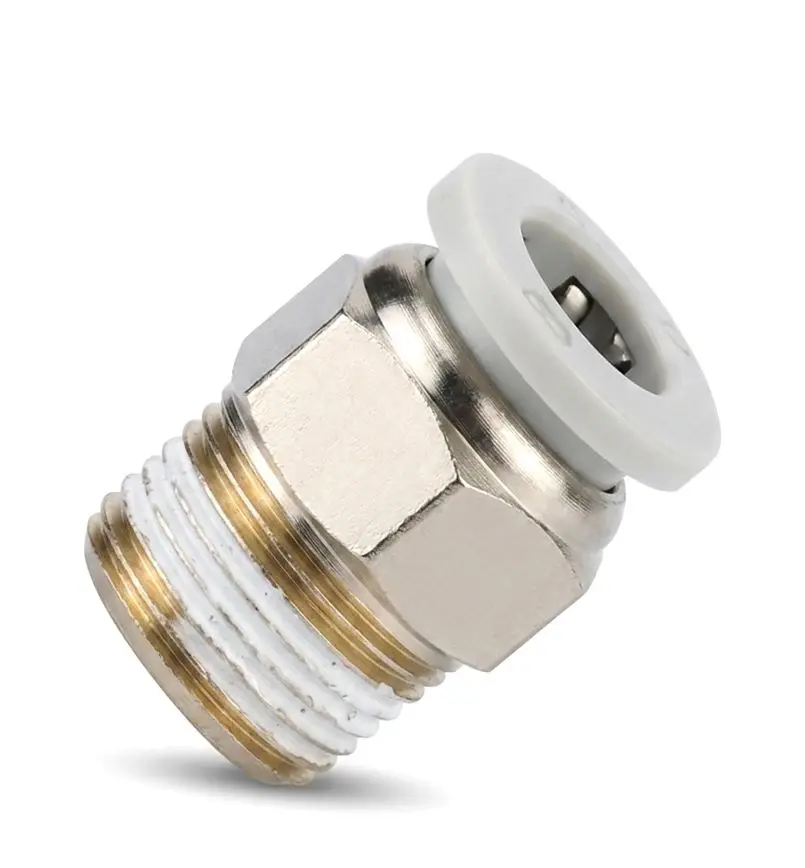

The AIRMIXS PC08-02 is a professional-grade one-touch pneumatic fitting designed for high-reliability connections in compressed air and vacuum systems. It features a robust nickel-plated brass body and a precision-engineered stainless steel lock claw that provides a secure, vibration-resistant grip on 8mm OD tubing. The 1/4" BSPT threads come with a pre-applied Teflon sealant for a leak-proof installation right out of the box. Its internal hexagon design allows for easy tightening in confined spaces where a standard wrench cannot reach.
Specification | Details |
|---|
Model Number | PC08-02 |
Fitting Type | Straight Male Thread (Push-to-Connect) |
Tube Connection | 8mm Outer Diameter (OD) |
Thread Connection | 1/4" BSPT (R 1/4) |
Body Material | Nickel-Plated Brass |
Release Ring | PBT / Acetal (White) |
Sealing Mechanism | Stainless Steel Lock Claw & NBR Seal |
Thread Sealant | Pre-applied Teflon (PTFE) |
Working Pressure | 0 – 150 PSI (0 – 1.0 MPa) |
Vacuum Pressure | -29.5 in Hg (-100 kPa) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Compatible Media | Compressed Air, Non-corrosive Gases, Vacuum |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
