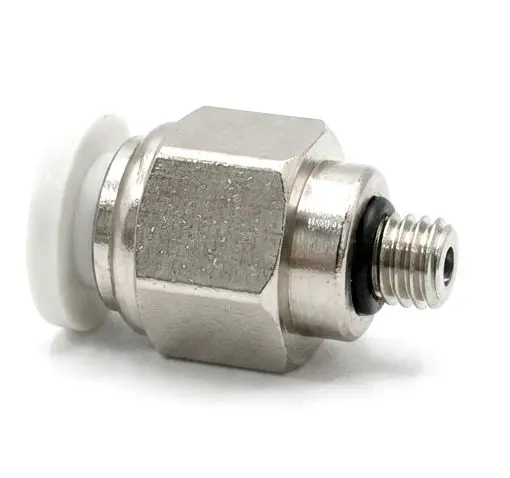

The AIRMIXS PC06-M5 is an ultra-compact, one-touch pneumatic fitting designed for precision air systems where space is at a premium. It allows for a direct connection between 6mm OD tubing and small-scale M5 threaded ports commonly found on compact cylinders, manifolds, and solenoid valves. This model features a durable nickel-plated brass body and an integrated NBR O-ring, ensuring a leak-proof seal on flat surfaces without the need for additional sealant or Teflon tape. The stainless steel internal lock claw provides a secure grip on the tubing, while the white PBT release ring facilitates quick, one-handed disconnection.
Specification | Details |
|---|
Model Number | PC06-M5 |
Fitting Type | Straight Male Thread (Push-to-Connect) |
Tube Connection | 6mm Outer Diameter (OD) |
Thread Connection | M5 x 0.8 Metric Thread |
Body Material | Nickel-Plated Brass |
Release Sleeve | PBT / Acetal (White) |
Sealing Type | NBR O-Ring(Included) |
Locking Mechanism | Stainless Steel (SUS304) Claw |
Operating Pressure | 0 – 150 PSI (0 – 1.0 MPa) |
Negative Pressure | -29.5 in Hg (-100 kPa) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Compatible Media | Compressed Air, Vacuum |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
