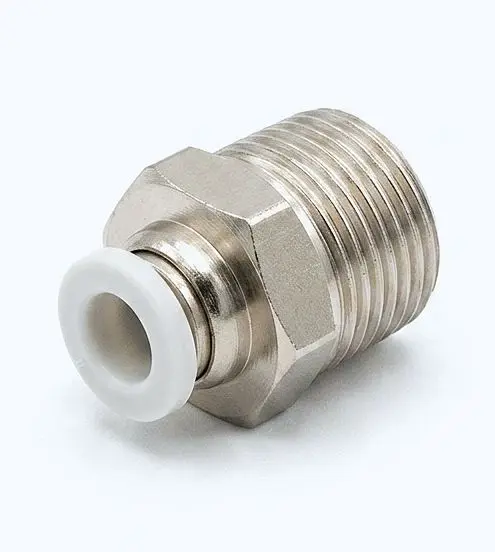

The AIRMIXS PC06-03 is a premium one-touch pneumatic fitting designed for rapid, secure connections between 6mm OD tubing and 3/8" threaded ports. This straight male connector features a high-grade nickel-plated brass body for superior corrosion resistance and a white PBT release button for easy tube disconnection. The internal hex design allows for streamlined installation using an Allen wrench in tight spaces, while the pre-applied thread sealant ensures an immediate, airtight seal without the need for additional tape.
Specification | Details |
|---|
Model Number | PC06-03 |
Fitting Type | Straight Male Thread (Push-to-Connect) |
Tube Connection | 6mm Outer Diameter (OD) |
Thread Connection | 3/8" BSPT (R 3/8) |
Body Material | Nickel-Plated Brass |
Release Sleeve | POM / PBT (White) |
Claw Material | Stainless Steel |
Thread Sealant | Pre-applied Teflon Coating |
Operating Pressure | 0 to 150 PSI (0 to 10 bar) |
Negative Pressure | -29.5 in Hg (-100 kPa) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Compatible Media | Compressed Air, Vacuum |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
