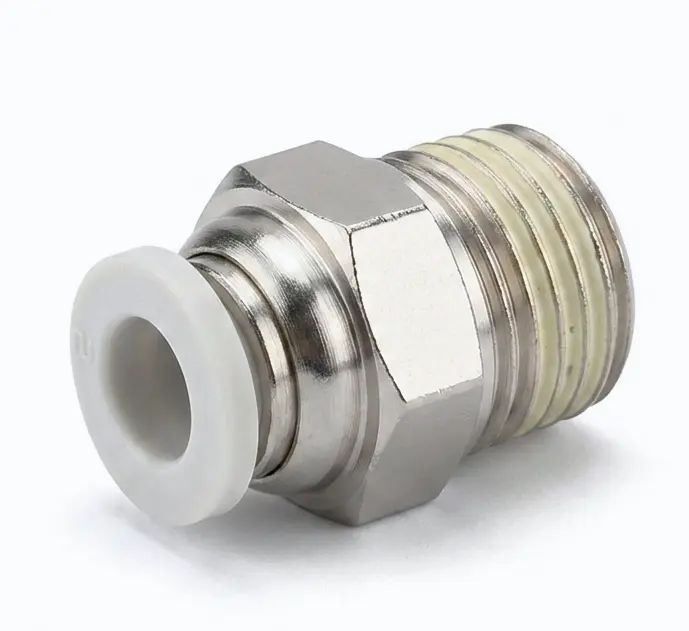

The AIRMIXS PC06-02 is a high-performance, one-touch push-to-connect fitting designed for quick and reliable pneumatic tubing connections. Featuring a durable nickel-plated brass body and a precision-engineered stainless steel lock claw, it ensures a leak-free seal for air and vacuum applications. The internal hexagon design allows for easy installation using an Allen key in confined spaces, while the pre-applied Teflon thread sealant guarantees a secure, airtight fit upon installation.
Specification | Details |
|---|
Model Number | PC06-02 |
Connection Type | Straight Male Thread |
Tube Outer Diameter (O.D.) | 6mm |
Thread Size | 1/4" BSPT (R 1/4) |
Body Material | Nickel-Plated Brass |
Release Ring Material | PBT Resin / Acetal (White) |
Seal Material | NBR (Nitrile Rubber) |
Lock Claw | Stainless Steel (SUS) |
Working Pressure | 0 – 150 psi (0 – 1.0 MPa) |
Vacuum Pressure | -29.5 in Hg (-100 kPa) |
Temperature Range | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
