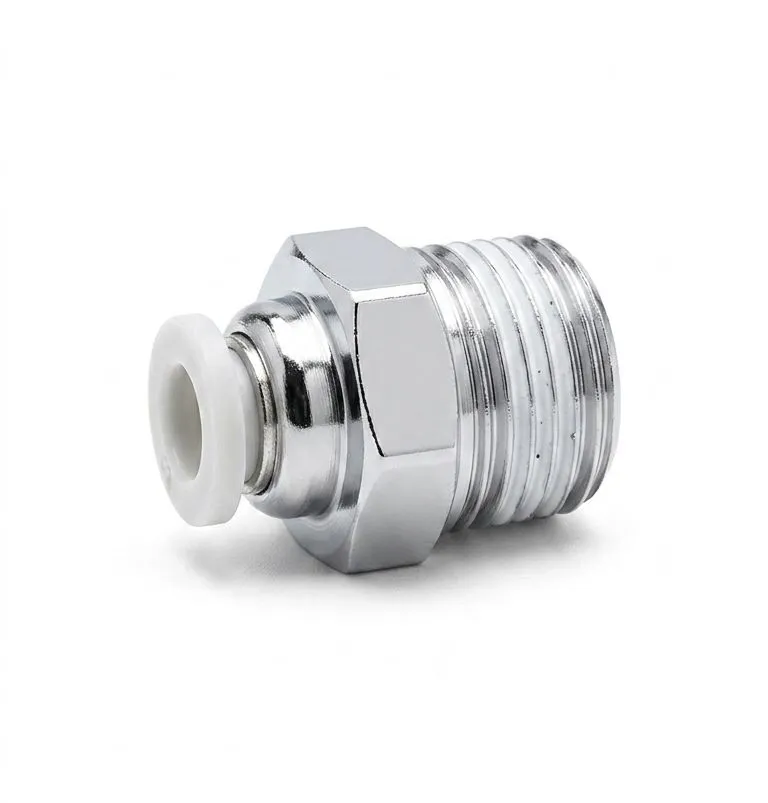

The PC06-01 Male Straight Connector is a compact push-to-connect fitting engineered for connecting a 6mm outer diameter (OD) pneumatic tube directly to a 1/8" BSPT female threaded port. Designed for rapid installation, it allows instant, tool-free tube insertion with a tight seal and an easy-release collar for smooth disengagement. Featuring an integrated hex design for easy tightening using a standard spanner or Allen key, this fitting is ideal for compressed air lines, industrial automation, robotics, and 3D printer Bowden tube connections.
Specification | Value |
|---|
Model | PC06-01 (or PC6-01) |
Fitting Type | Male Straight / Push-in Threaded Connector |
Applicable Tube Outer Diameter (OD) | 6mm |
Thread Size & Type | 1/8" BSPT (R 1/8 Male Tapered Thread) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 to 1.0 MPa / 0 to 150 PSI (0 to 10 bar) |
Negative Pressure / Vacuum | -100 kPa (-29.5 inHg / -750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE), PTFE |
Connection Method | One-Touch Push-In (Tube Side) / Threaded (Port Side) |
