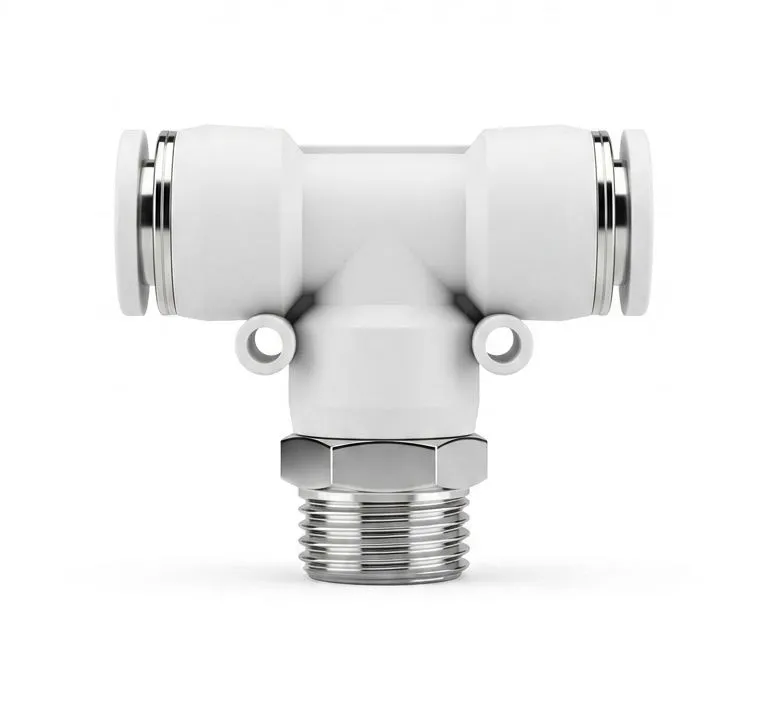

The AIRMIXS PB 14-04 Male Branch Tee is a premium, industrial-grade one-touch pneumatic fitting built to handle heavy-duty fluid power configurations. Featuring a classic T-shaped architecture, this adapter joins two 14mm outer diameter (O.D.) pneumatic lines along its upper horizontal axis and integrates a robust R1/2 male tapered pipe thread at the bottom branch.
Crafted with a resilient, impact-resistant Polybutylene Terephthalate (PBT) resin outer body and durable, corrosion-resistant nickel-plated brass threads, it provides optimal stability on modern factory lines. Internally, a stainless steel lock-claw retention mechanism securely grips the tubing to eliminate slippage, while high-end Nitrile Butadiene Rubber (NBR) seals prevent vacuum or high-pressure micro-leaks. Even after tightening the lower thread into a female manifold port, the entire upper body rotates freely up to 360 degrees to permit flawless, customized pathing layouts.
Technical Attribute | Specification Details |
|---|
Fitting Type | Push-in / One-Touch Male Branch Tee |
Tube Connection Size (Ports A & B) | $\phi$14 mm Outer Diameter (O.D.) |
Branch Connection Size (Port C) | R 1/2" Tapered Pipe Thread |
Applicable Fluid Medium | Compressed Air, Vacuum, Inert Gases |
Max. Operating Pressure | 1.0 MPa (approx. 145 PSI / 10 bar) |
Max. Vacuum Level | -100 kPa (-29.5 inHg) |
Operating Temperature Range | 0°C to 60°C (32°F to 140°F) No Freezing |
Body Material | Polybutylene Terephthalate (PBT Resin) |
Thread & Core Construction | Brass with highly durable Electroless Nickel Plating |
Internal Sealing Ring | Nitrile Butadiene Rubber (NBR) |
Lock Claw Mechanism | Stainless Steel |
Thread Coating | Pre-applied Teflon Sealant / Gasket Seal |
Compliance | RoHS Compliant |
