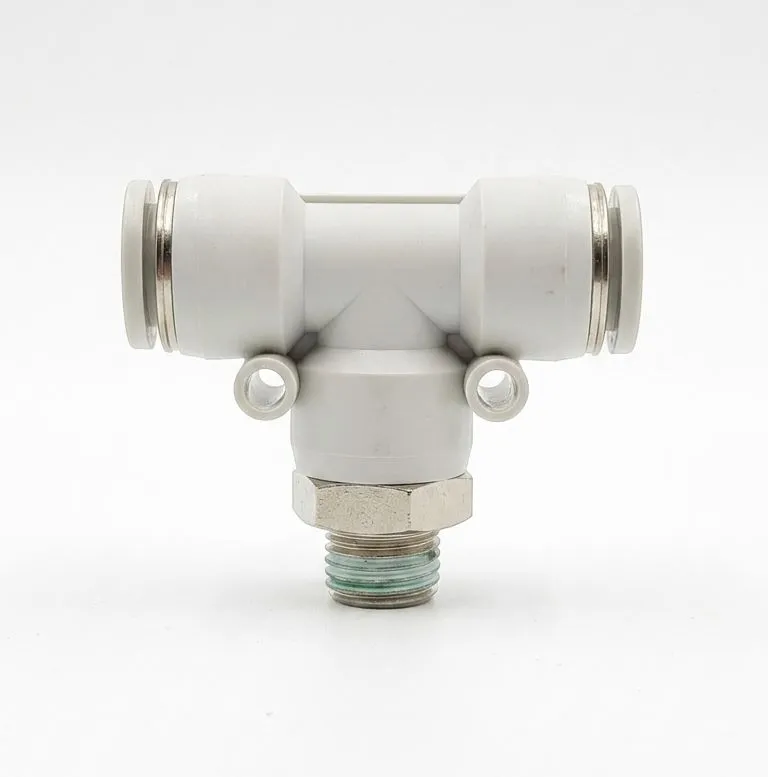

The AIRMIXS PB12-01 Male Branch Tee is a high-performance, push-to-connect fitting designed for quick and efficient branching of compressed air lines. Featuring two 12mm push-in tube ports and a compact 1/8" BSPT (PT) male thread at the base, it enables smooth transition from a 1/8" threaded port to dual 12mm tubing runs.
Designed for modern industrial automation systems, its 360-degree rotatable swivel base allows easy alignment and mounting in tight spaces. The pre-applied PTFE thread sealant on the male threads guarantees an instant, airtight seal without requiring additional Teflon tape.
Specification | Value / Technical Detail |
|---|
Model Code | PB12-01 |
Fitting Type | Male Branch Tee (Swivel) |
Tube Connection Outer Diameter (OD) | 12 mm (x2 Ports) |
Thread Connection | 1/8" BSPT / PT Male Thread |
Compatible Media | Compressed Air, Vacuum |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa to 1.5 MPa |
Vacuum / Negative Pressure | -100 kPa (-29.5 inHg / -750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Thread Sealant | Pre-applied Teflon (PTFE) Coating |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
