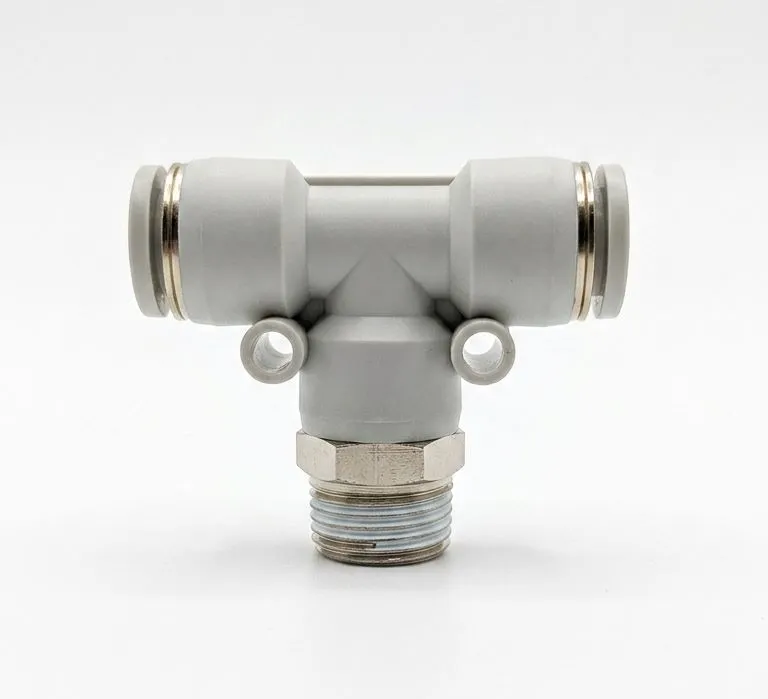

The AIRMIXS PB 10-03 Male Branch Tee is a commercial-grade, one-touch push-in pneumatic fitting engineered for versatile and reliable fluid power routing. Featuring a high-efficiency T-shaped architectural profile, this adapter is designed to connect two 10mm outer diameter (O.D.) pneumatic lines along its horizontal run while branching straight down to a heavy-duty R3/8 male tapered pipe thread.
Built from impact-resistant Polybutylene Terephthalate (PBT) resin casing and rugged, nickel-plated brass threads, it stands up seamlessly to demanding factory floor environments. Internally, stainless steel lock-claws securely grip the tubing to eliminate slippage under pressure, while top-tier Nitrile Butadiene Rubber (NBR) seals prevent vacuum or compressed air micro-leaks. The upper push-in body rotates a full 360 degrees around its threaded metal base even after installation, allowing for clean, space-saving, and highly customized air path layouts. Please refer to the referenced product file AIRMIXS PB 10-03.jpg to inspect the structural outline and quick-release collar mechanism.
Technical Attribute | Specification Details |
|---|
Fitting Type | Push-in / One-Touch Male Branch Tee |
Tube Connection Size (Ports A & B) | $\phi$10 mm Outer Diameter (O.D.) |
Branch Connection Size (Port C) | R 3/8" Tapered Pipe Thread |
Applicable Fluid Medium | Compressed Air, Vacuum, Inert Gases |
Max. Operating Pressure | 1.0 MPa (approx. 145 PSI / 10 bar) |
Max. Vacuum Level | -100 kPa (-29.5 inHg) |
Operating Temperature Range | 0°C to 60°C (32°F to 140°F) No Freezing |
Body Material | Polybutylene Terephthalate (PBT Resin) |
Thread & Core Construction | Brass with highly durable Electroless Nickel Plating |
Internal Sealing Ring | Nitrile Butadiene Rubber (NBR) |
Lock Claw Mechanism | Stainless Steel |
Thread Coating | Pre-applied Teflon Sealant / Gasket Seal |
Compliance | RoHS Compliant |
