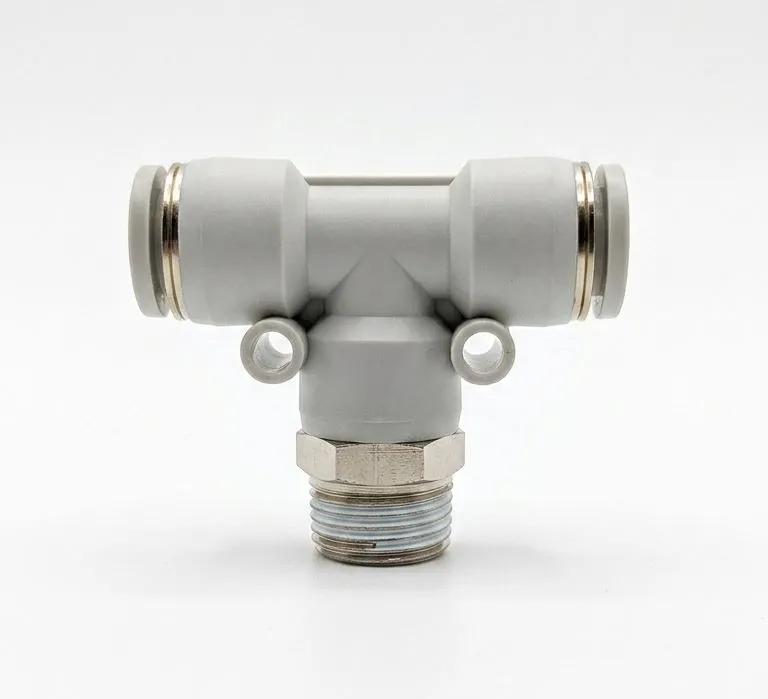

The AIRMIXS PB10-01 Male Branch Tee is a high-performance, push-to-connect fitting designed for quick, secure branching of compressed air lines. Featuring two 10mm push-in tube ports and a 1/8" BSPT (PT) male thread at the base, it allows seamless connection from a single threaded air port to two parallel tubing runs.
Constructed with a lightweight, flame-resistant PBT body and a nickel-plated brass thread section, the PB10-01 offers superior corrosion resistance and long-lasting durability. Its 360-degree rotatable swivel design enables effortless positioning during installation, while the pre-applied PTFE thread sealant ensures an instant, airtight seal without extra tape.
Specification | Value / Technical Detail |
|---|
Model Code | PB10-01 |
Fitting Type | Male Branch Tee (Swivel) |
Tube Connection Outer Diameter (OD) | 10 mm (x2 Ports) |
Thread Connection | 1/8" BSPT / PT Male Thread |
Compatible Media | Compressed Air, Vacuum (Water optional with insert rings) |
Operating Pressure Range | 0 – 1.0 MPa (0 – 150 PSI / 0 – 10 bar) |
Max / Proof Pressure | 1.32 MPa to 1.5 MPa |
Vacuum / Negative Pressure | -100 kPa (-29.5 inHg / -750 mmHg) |
Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Body Material | Resin (PBT Polymer, Light Grey) |
Thread Material | Electroless Nickel-Plated Brass |
Locking Claw | Stainless Steel (SUS304) |
Thread Sealant | Pre-applied Teflon (PTFE) Coating |
Applicable Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
