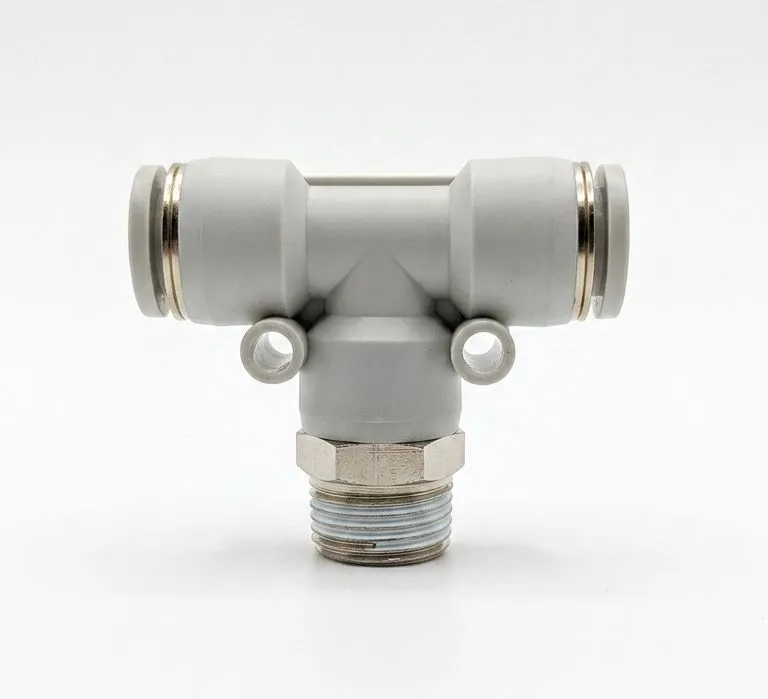

The PB08-01 Male Branch Tee Connector is a T-shaped push-to-connect pneumatic fitting designed to split or combine airflow between two 8mm outer diameter (OD) tubes and a central 1/8" BSPT (R 1/8) female threaded port. Engineered for effortless installation and reliable connection, it features a 360^\circ$ swivel body mechanism that allows flexible orientation of the branch ports after threading into place. Both push-in ports feature one-touch release collars for quick, tool-free tube insertion and easy removal, making it ideal for pneumatic control systems, factory automation machinery, and compressed air distribution circuits.
Specification | Value |
|---|
Model | PB08-01 (or PB8-01) |
Fitting Type | Male Branch Tee / Swivel Push-In T-Connector |
Applicable Tube Outer Diameter (OD) | 8\text{ mm} (2 Ports) |
Thread Size & Type | 1/8" BSPT (R 1/8 Male Tapered Thread) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 \text{ to } 1.0\text{ MPa} (0 \text{ to } 10\text{ bar} / \sim145\text{ PSI}) |
Proof / Max Pressure | 1.5\text{ MPa} ($250\text{ PSI}) |
Negative Pressure / Vacuum | -100\text{ kPa} (-29.5\text{ inHg} / -750\text{ mmHg}) |
Operating Temperature | 0^\circ\text{C} \text{ to } 60^\circ\text{C} (32^\circ\text{F} \text{ to } 140^\circ\text{F}) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Connection Method | One-Touch Push-In (2x Tube Ports) / Threaded (1x Male Port) |
