The AIRMIXS PB 04-M6 Male Branch Tee is a compact, high-precision one-touch push-in pneumatic fitting engineered for intricate fluid power routing and miniature automation systems. Featuring an efficient T-shaped architectural profile, this adapter connects two 4mm outer diameter (O.D.) pneumatic lines along its horizontal run while branching straight down to a specialized M6 metric male thread.

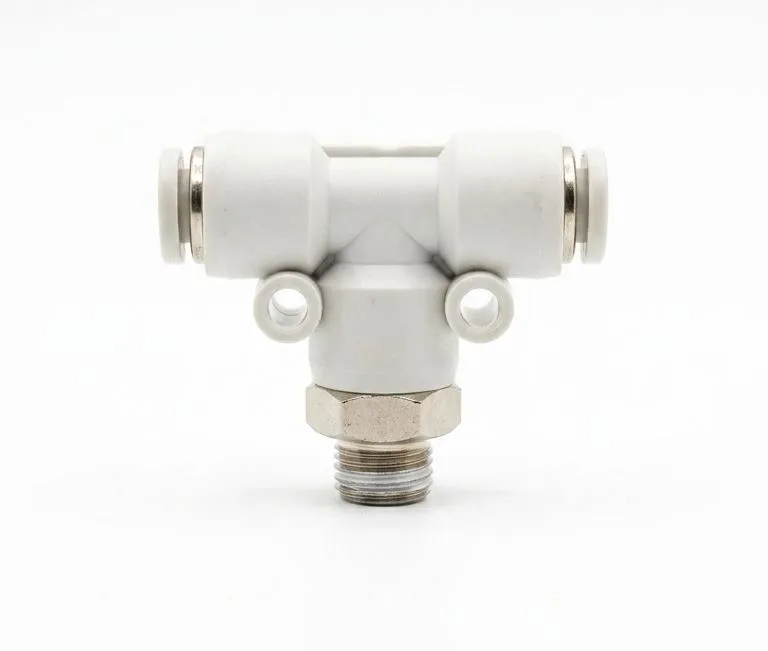

Built from impact-resistant Polybutylene Terephthalate (PBT) resin casing and rugged, nickel-plated brass threads, it stands up seamlessly to demanding industrial environments. Internally, stainless steel lock-claws securely grip the tubing to eliminate slippage under pressure, while top-tier Nitrile Butadiene Rubber (NBR) seals prevent vacuum or compressed air micro-leaks. The upper push-in body rotates a full 360 degrees around its threaded metal base even after installation, allowing for clean, space-saving, and highly customized air path layouts in tight configurations. Please refer to the referenced product file AIRMIXS PB 04-M6.jpg to inspect the structural outline and quick-release collar mechanism.
Technical Attribute | Specification Details |
|---|
Fitting Type | Push-in / One-Touch Male Branch Tee |
Tube Connection Size (Ports A & B) | $\phi$4 mm Outer Diameter (O.D.) |
Branch Connection Size (Port C) | M6 $\times$1.0 Metric Thread |
Applicable Fluid Medium | Compressed Air, Vacuum, Inert Gases |
Max. Operating Pressure | 1.0 MPa (approx. 145 PSI / 10 bar) |
Max. Vacuum Level | -100 kPa (-29.5 inHg) |
Operating Temperature Range | 0°C to 60°C (32°F to 140°F) No Freezing |
Body Material | Polybutylene Terephthalate (PBT Resin) |
Thread & Core Construction | Brass with highly durable Electroless Nickel Plating |
Internal Sealing Ring | Nitrile Butadiene Rubber (NBR) |
Lock Claw Mechanism | Stainless Steel |
Thread Sealing | Integrated O-ring / Gasket Seal |
Compliance | RoHS Compliant |
