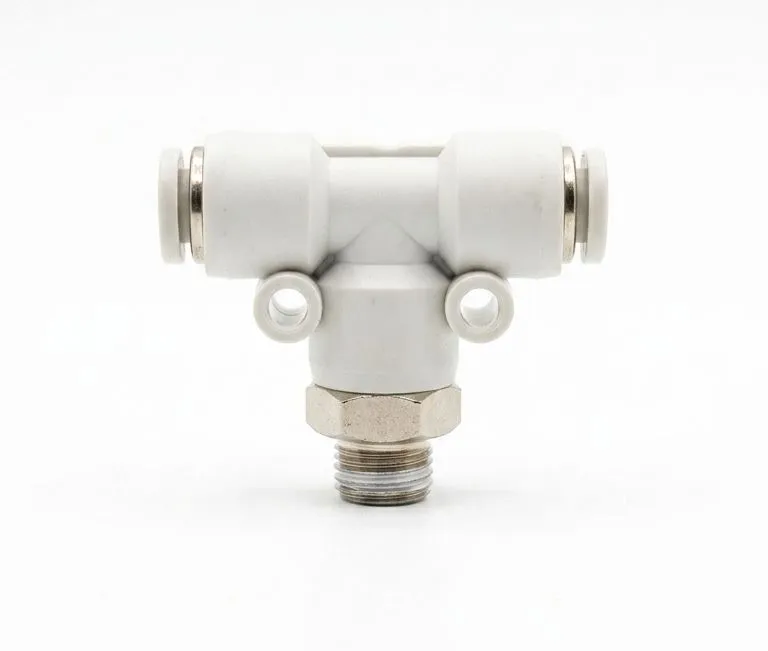

The PB04-M5 Male Branch Tee Connector is a miniature T-shaped push-to-connect pneumatic fitting designed to split or combine airflow between two 4mm outer diameter (OD) tubes and a central M5 metric female threaded port. Engineered specifically for compact and space-restricted automation systems, it features a 360^\circ swivel body mechanism allowing flexible orientation of the branch ports after threading. Each push-in connection point includes an ergonomic release collar for tool-free, instant tube insertion and effortless disengagement, making it ideal for micro-pneumatics, robotic end-effectors, small pneumatic cylinders, and air control circuits.
Specification | Value |
|---|
Model | PB04-M5 (or PB4-M5) |
Fitting Type | Male Branch Tee / Swivel Push-In T-Connector |
Applicable Tube Outer Diameter (OD) | 4\text{ mm} (2 Ports) |
Thread Size & Type | M5 x 0.8 Metric Thread (With integrated O-ring / gasket) |
Fluid Medium | Compressed Air, Vacuum |
Operating Pressure Range | 0 \text{ to } 1.0\text{ MPa} ($0 \text{ to } 10\text{ bar} / \sim145\text{ PSI}) |
Proof / Max Pressure | 1.5\text{ MPa} (250\text{ PSI}) |
Negative Pressure / Vacuum | 100\text{ kPa} (-29.5\text{ inHg} / -750\text{ mmHg}) |
Operating Temperature | 0^\circ\text{C} \text{ to } 60^\circ\text{C} (32^\circ\text{F} \text{ to } 140^\circ\text{F}) |
Compatible Tubing | Polyurethane (PU), Nylon (PA), Polyethylene (PE) |
Connection Method | One-Touch Push-In (2x Tube Ports) / Threaded (1x M5 Male Port) |
