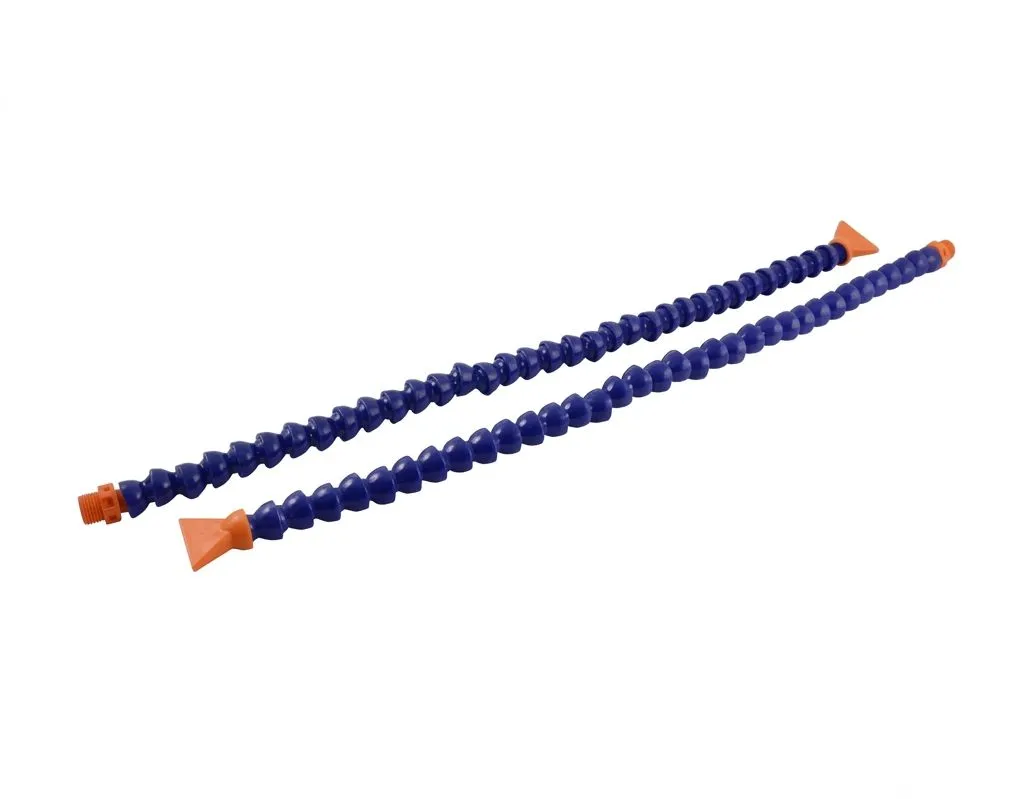

The AIRMIXS OEL03 is a heavy-duty, high-flow flexible modular plastic coolant hose designed for maximum liquid and air volume delivery on large CNC milling machines, lathes, heavy grinders, and industrial washing applications. Featuring a large 1/2" internal diameter system, it supplies maximum coolant flow to cool workpieces rapidly and flush away heavy metal chips during high-speed machining. Its interlocking ball-and-socket links allow 360-degree positioning that holds steady under pump flow and machine vibration.
Feature / Specification | Detail |
|---|
Model Code | OEL03 (1/2" Series) |
Component Type | Modular Flexible Coolant / Lubrication Pipe Hose |
Hose Inner Diameter (ID) | 1/2" (12.7 mm) |
Thread Connection | 1/2" NPT / BSP Male Thread |
Nozzle Styles | Round Nozzle / Flat Nozzle |
Body Material | Acetal Copolymer / Technopolymer (POM) Plastic |
Color Option | Blue & Orange |
Standard Hose Length | 400 mm – 600 mm (Adjustable by adding/removing links) |
Max Working Pressure | 2.0 – 3.0 bar (30 – 45 PSI) |
Operating Temperature | Up to +65°C (+150°F) |
Fluid Compatibility | Coolants, Cutting Oils, Water, Compressed Air, Non-Acidic Solvents |
