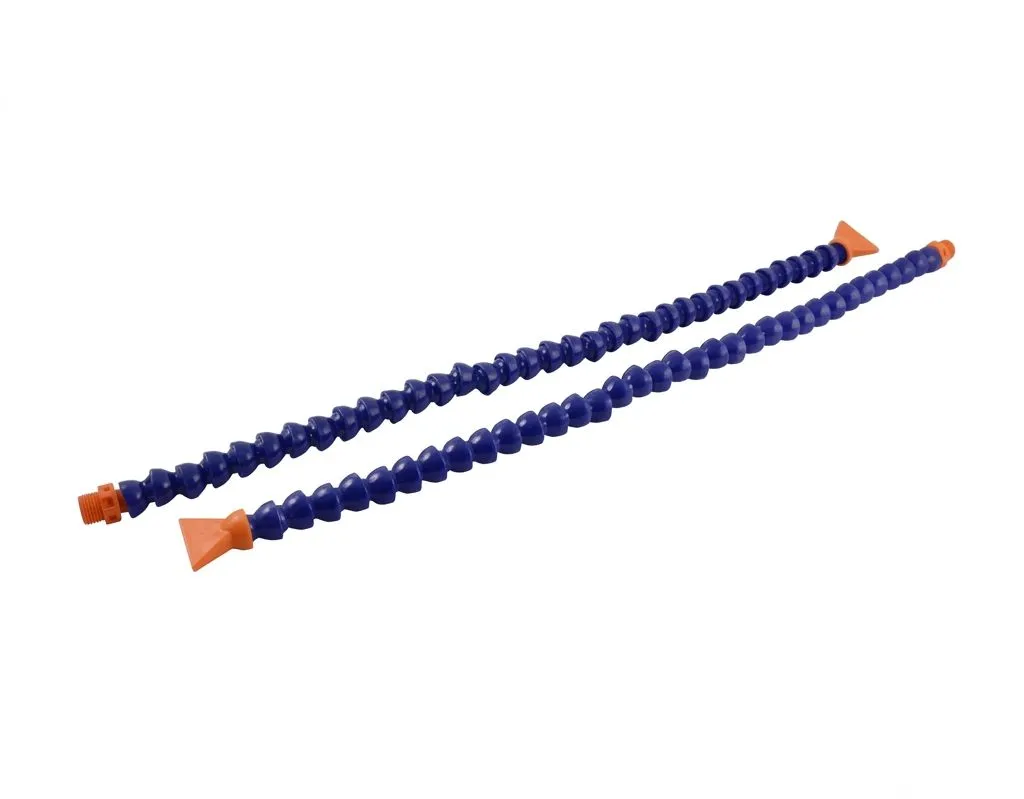

The AIRMIXS OEL02 is a medium-flow, flexible modular plastic coolant hose engineered for precision fluid, lubricant, and air distribution on CNC machining centers, lathes, milling equipment, and grinders. Featuring a 3/8" internal diameter system, it delivers higher flow rates than the standard 1/4" series while maintaining high positional rigidity. Its interlocking ball-and-socket design allows full 360-degree articulation, enabling accurate targeting of cutting oil or coolant onto cutting tools and workpieces to extend tool life and prevent overheating.
Feature / Specification | Detail |
|---|
Model Code | OEL02 (3/8" Series) |
Component Type | Modular Flexible Coolant / Lubrication Pipe Hose |
Hose Inner Diameter (ID) | 3/8" (9.5 mm) |
Thread Connection | 3/8" NPT / BSP Male Thread |
Nozzle Styles | Round Nozzle / Flat Nozzle |
Body Material | Acetal Copolymer / Technopolymer (POM) Plastic |
Color Option | Blue & Orange |
Standard Hose Length | 400 mm – 500 mm (Adjustable by adding/removing links) |
Max Working Pressure | 2.0 – 3.5 bar (30 – 50 PSI) |
Operating Temperature | Up to +65°C (+150°F) |
Fluid Compatibility | Coolants, Oils, Water, Compressed Air, Non-Acidic Solvents |
