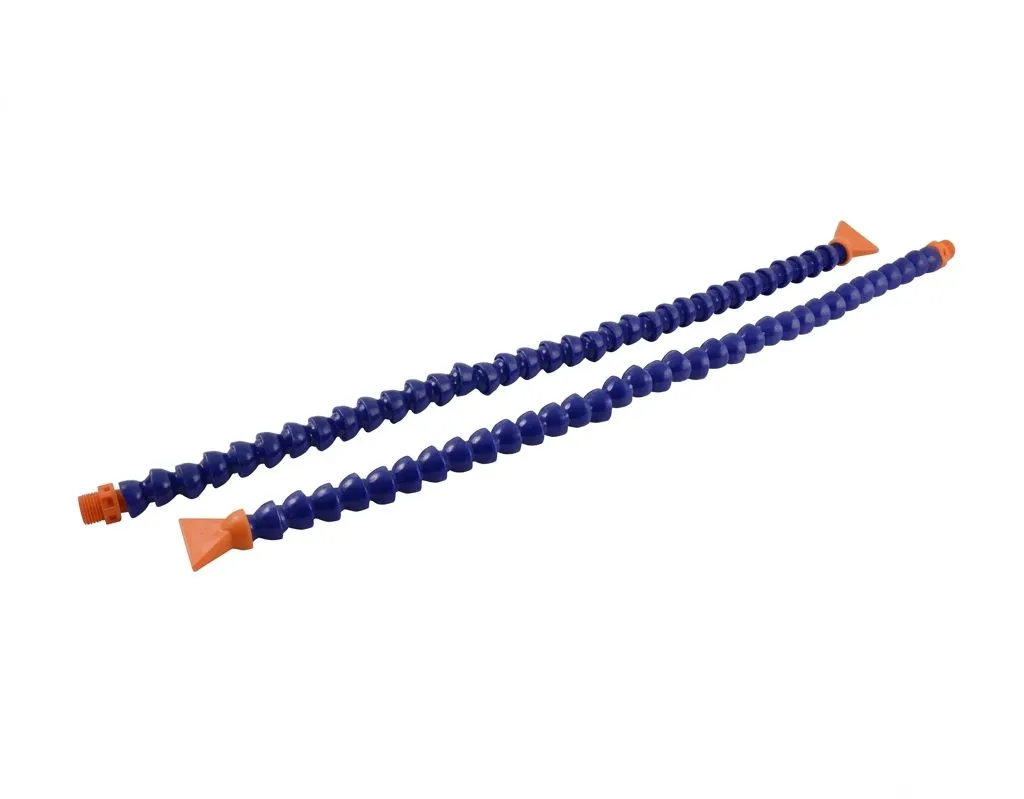

The AIRMIXS OEL01 is a flexible, modular plastic coolant hose designed for high-precision liquid and air delivery on CNC machinery, lathes, milling machines, and grinding equipment. Constructed from high-grade chemical-resistant technopolymer (POM), its ball-and-socket segmented structure allows 360-degree positioning and flex-bending without sagging, kinking, or losing alignment under vibration. Ideal for directing cutting fluids, lubricants, water, or compressed air directly onto cutting tools and workpieces to lower machining heat and wash away chips.
Feature / Specification | Detail |
|---|
Model Code | OEL01 (1/4" Series) |
Component Type | Modular Flexible Coolant / Lubrication Pipe Hose |
Hose Inner Diameter (ID) | 1/4" (6.35 mm) |
Thread Connection | 1/4" NPT / BSP Male Thread |
Nozzle Styles | Round Nozzle / Flat Nozzle |
Body Material | Acetal Copolymer / Technopolymer (POM) Plastic |
Color Option | Blue & Orange |
Standard Hose Length | 300 mm – 400 mm (Adjustable by adding/removing segments) |
Max Working Pressure | 2.0 – 3.5 bar (30 – 50 PSI) |
Operating Temperature | Up to +65°C (+150°F) |
Fluid Compatibility | Coolant, Water, Machine Oils, Compressed Air, Non-Acidic Solvents |
