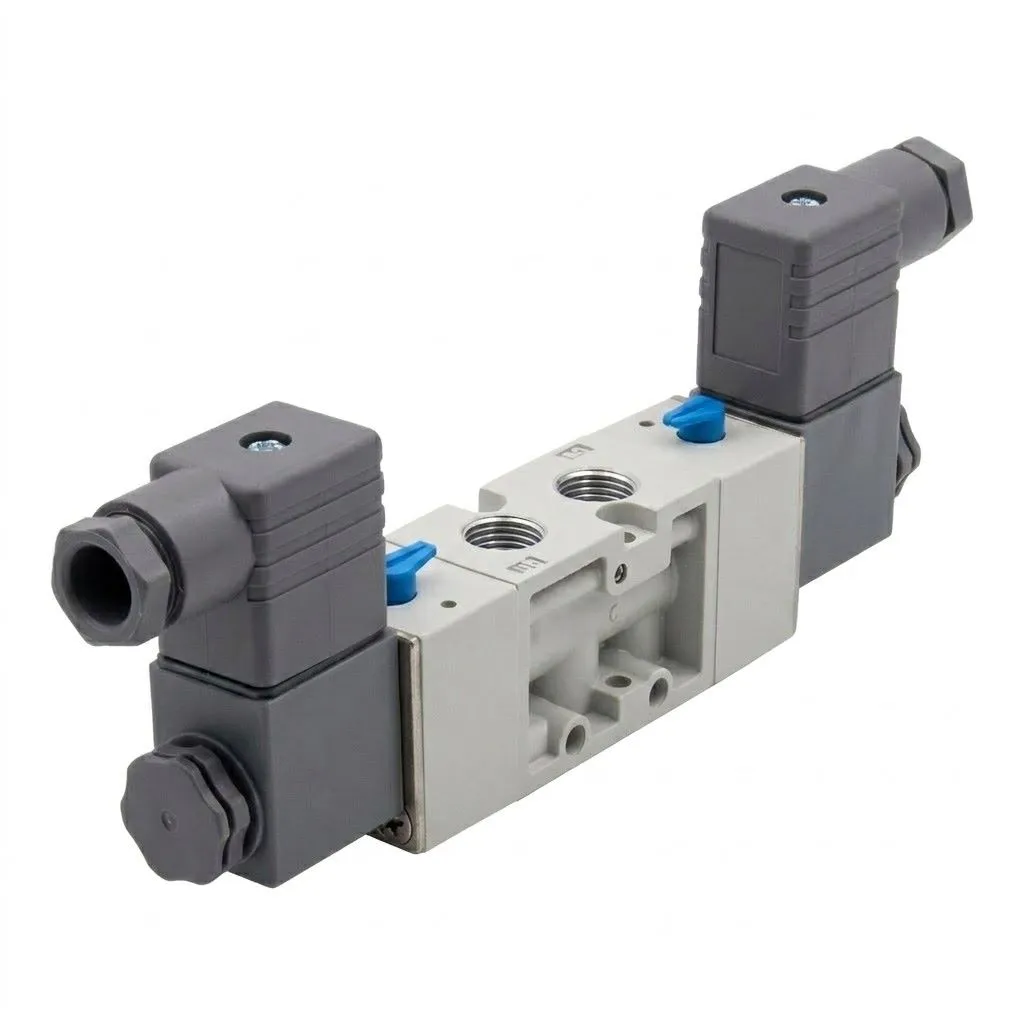

The AIRMIXS MVSC220-4E2P is a 5-port, 3-position pressure-center solenoid valve engineered for directional control of mid-size double-acting pneumatic actuators.Featuring dual solenoid coils with a spring-centered pressure-center configuration, it supplies full line pressure to both ports when de-energized. This prevents cylinder rod drop, maintains mechanical holding force, and ensures safe position locking during emergency stop or system idle conditions.
Specification | Details |
|---|
Model | MVSC220-4E2P (Double Solenoid, Pressure Center) |
Valve Function | 5-Port, 3-Position (5/3-Way Pressure Center) |
Port Size | 1/4" (Inlet/Outlet/Exhaust Rc, G, or NPT thread options) |
Fluid / Medium | Filtered Air (40 μm minimum) |
Operating Pressure Range | 0.20 – 0.8 MPa (29 to 116 PSI) |
Proof Pressure | 1.0 MPa (145 PSI) |
Effective Orifice Area | 16 mm² to 18 mm² |
Response Time | ≤ 40 ms |
Operating Temperature | -5°C to +50°C (Non-freezing) |
Voltage Options | DC 24V, AC 110V, AC 220V (50/60Hz) |
Power Consumption | DC: ~2.0W – 2.5W / AC: ~4.4VA – 4.9VA |
Protection & Insulation Class | IP65 / Class F Insulation |
Electrical Entry | DIN Connector (with optional LED indicator) / Lead Wire |
Approximate Weight | 335g – 350g |
