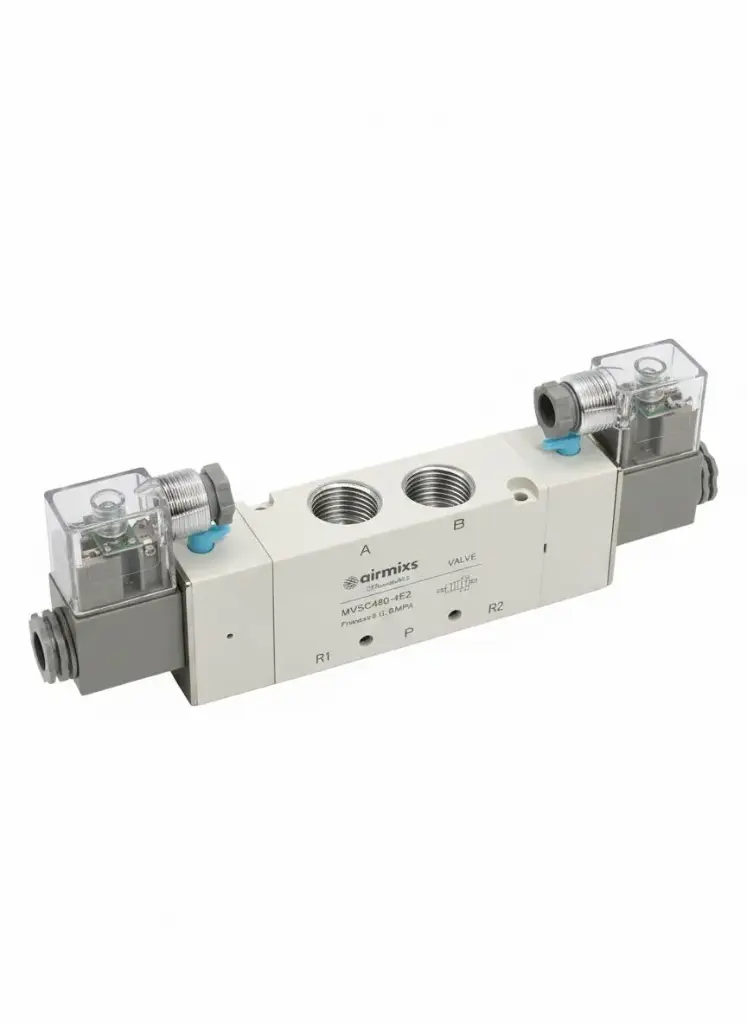

The MVSC-460-4E2 is a robust industrial directional control valve often used to manage large-bore pneumatic actuators. Its 1/2" port size provides significantly higher airflow than smaller 400-series valves, ensuring fast cylinder speeds and high torque for heavy-duty applications.
Feature | Specification |
|---|
Model | MVSC-460-4E2 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Double Solenoid(Bistable) |
Port Size | 1/2" (G / PT / NPT) |
Operating Medium | Filtered Air (min. 40 micron) |
Pressure Range | 0.2 – 0.8 MPa(29 to 116 PSI) |
Effective Orifice | 50 $mm^2$(Cv $\approx$1.6 to 1.85) |
Response Time | $\leq$50 ms |
Operating Temp. | -5°C to 50°C (No freezing) |
Power Consumption | DC: 2W / 2.5W |
