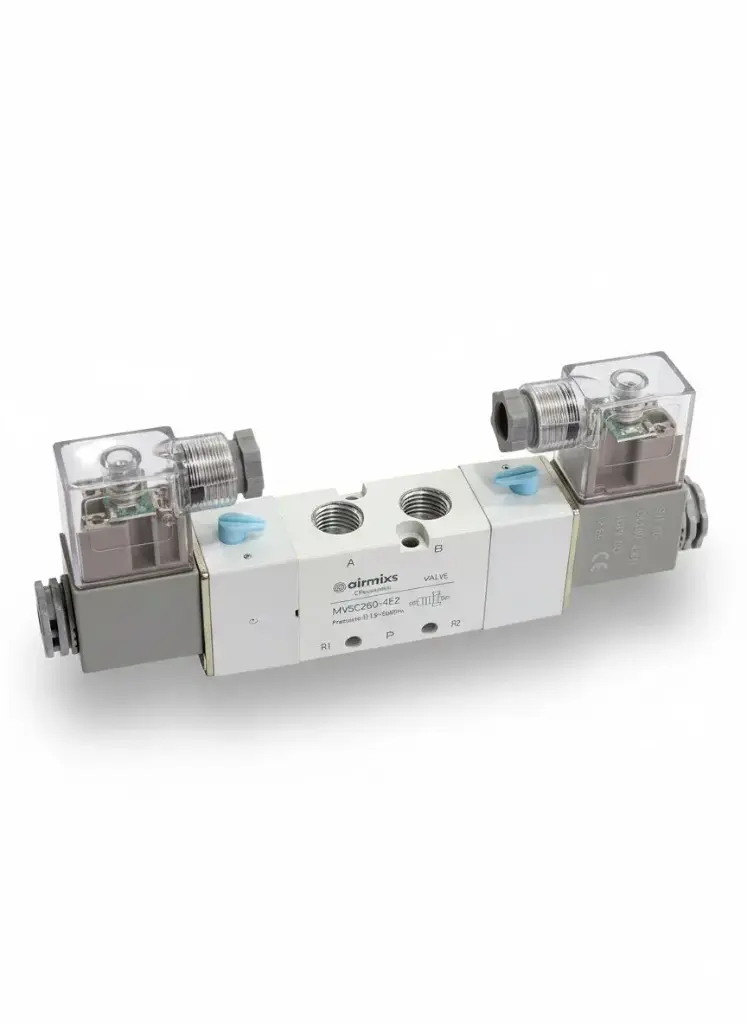

The MVSC-260-4E2 is a versatile industrial directional control valve designed for the reliable operation of double-acting pneumatic cylinders. Its 1/4" porting provides excellent flow characteristics, ensuring rapid cylinder actuation in high-speed production environments.
Feature | Specification |
|---|
Model | MVSC-260-4E2 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Double Solenoid(Bistable / Latching) |
Port Size | 1/4" (G) |
Effective Orifice | 30 $mm^2$(Cv $\approx$1.6) |
Operating Pressure | 0.2 – 0.8 MPa(29 to 116 PSI) |
Response Time | $\leq$30 ms |
Operating Temp. | -5°C to 50°C (Non-freezing) |
Power Consumption | DC: 2.5W / AC: 4.9VA |
Protection Class | IP65(Dust and Water-Jet Resistant) |
