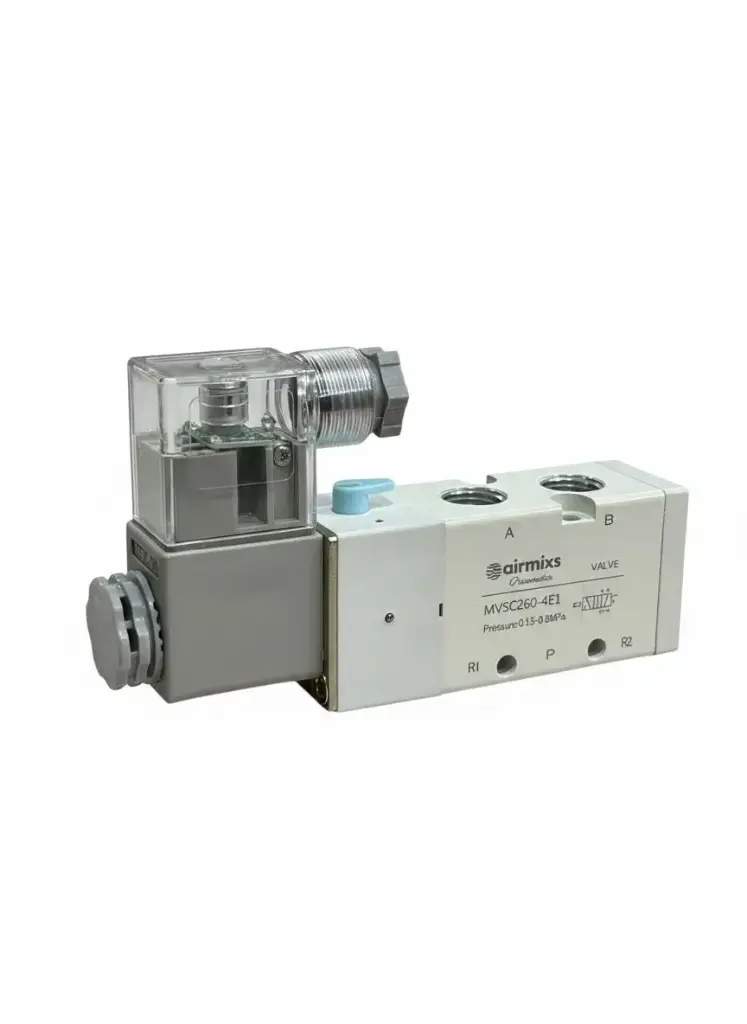

The MVSC-260-4E1 is an essential component for controlling double-acting cylinders in automated machinery where a "fail-safe" return position is required. Its high-flow 1/4" porting makes it ideal for medium-duty applications that require rapid cylinder extension and retraction.
Feature | Specification |
|---|
Model | MVSC-260-4E1 |
Valve Type | 5-Port, 2-Position (5/2 Way) |
Actuator Type | Single Solenoid(Spring Return) |
Port Size | 1/4" (G / PT / NPT) |
Effective Orifice | 30 $mm^2$(Cv $\approx$1.6) |
Operating Pressure | 0.15 – 0.8 MPa(21.7 to 116 PSI) |
Response Time | $\leq$30 ms |
Operating Temp. | -5°C to 50°C (Non-freezing) |
Power Consumption | |
